Mean impedance profiles for ten random inputs
R
X

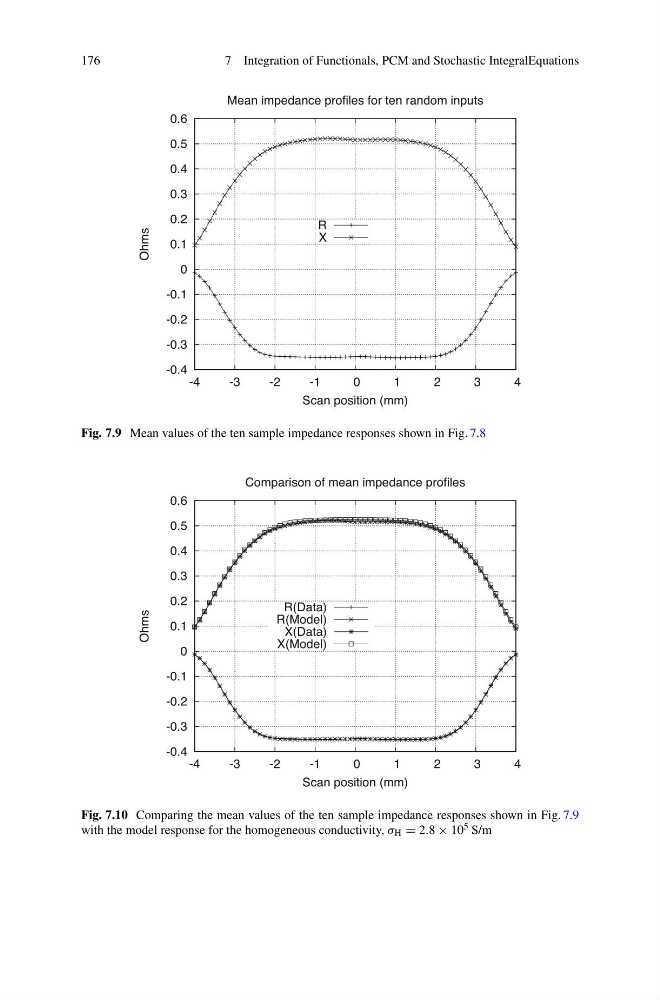

Fig. 7.9 Mean values of the ten sample impedance responses shown in Fig. 7.8
-0.4
-0.3
-0.2
-0.1
0
0.1
0.2
0.3
0.4
0.5
0.6
-4
-3
-2
-1
0
1
2
3
4
Ohms
Scan position (mm)
Comparison of mean impedance profiles
R(Data)
R(Model)
X(Data)
X(Model)
Fig. 7.10 Comparing the mean values of the ten sample impedance responses shown in Fig. 7.9
with the model response for the homogeneous conductivity, σ H = 2.8 × 10 5 S/m
