3 Bio-microelectromechanical Systems (BioMEMS) in Bio-sensing …
71

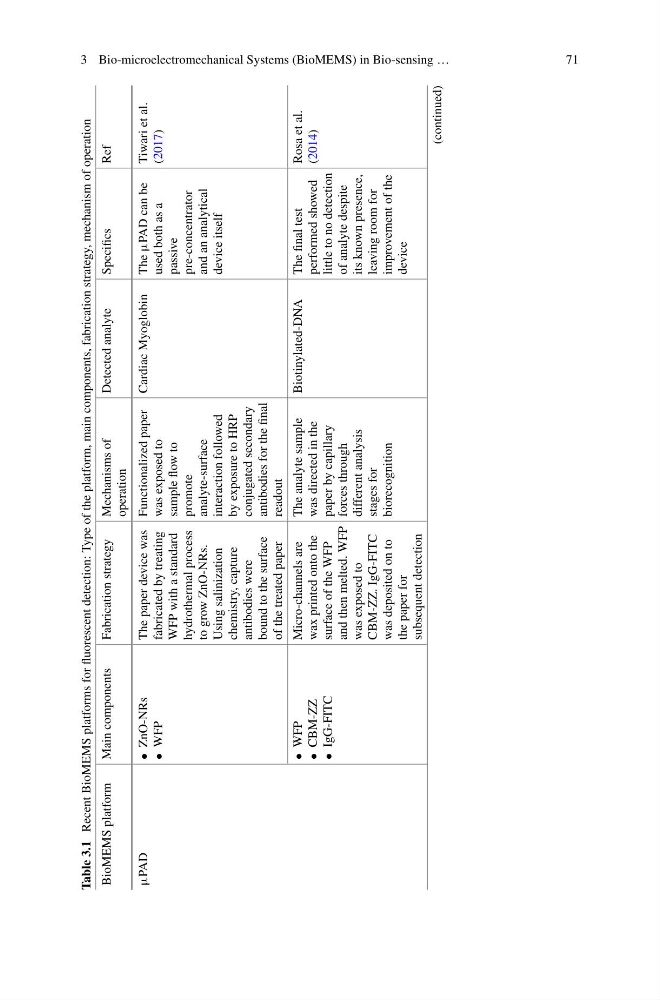

Table 3.1
Recent BioMEMS platforms for fluorescent detection: Type of the platform, main components, fabrication strategy, mechanism of operation
BioMEMS platform
Main components
Fabrication strategy
Mechanisms of
operation
Detected analyte
Specifics
Ref
µPAD
• ZnO-NRs
• WFP
The paper device was
fabricated by treating
WFP with a standard
hydrothermal process
to grow ZnO-NRs.
Using salinization
chemistry, capture
antibodies were
bound to the surface
of the treated paper
Functionalized paper
was exposed to
sample flow to
promote
analyte-surface
interaction followed
by exposure to HRP
conjugated secondary
antibodies for the final
readout
Cardiac Myoglobin
The
µPAD can be
used both as a
passive
pre-concentrator
and an analytical
device itself
Tiwari et al.
(2017)
• WFP
• CBM-ZZ
• IgG-FITC
Micro-channels are
wax printed onto the
surface of the WFP
and then melted. WFP
was exposed to
CBM-ZZ. IgG-FITC
was deposited on to
the paper for
subsequent detection
The analyte sample
was directed in the
paper by capillary
forces through
different analysis
stages for
biorecognition
Biotinylated-DNA
The final test
performed showed
little to no detection
of analyte despite
its known presence,
leaving room for
improvement of the
device
Rosa et al.
(2014)
(continued)
