8 Bio-microelectromechanical Systems (BioMEMS) …
167

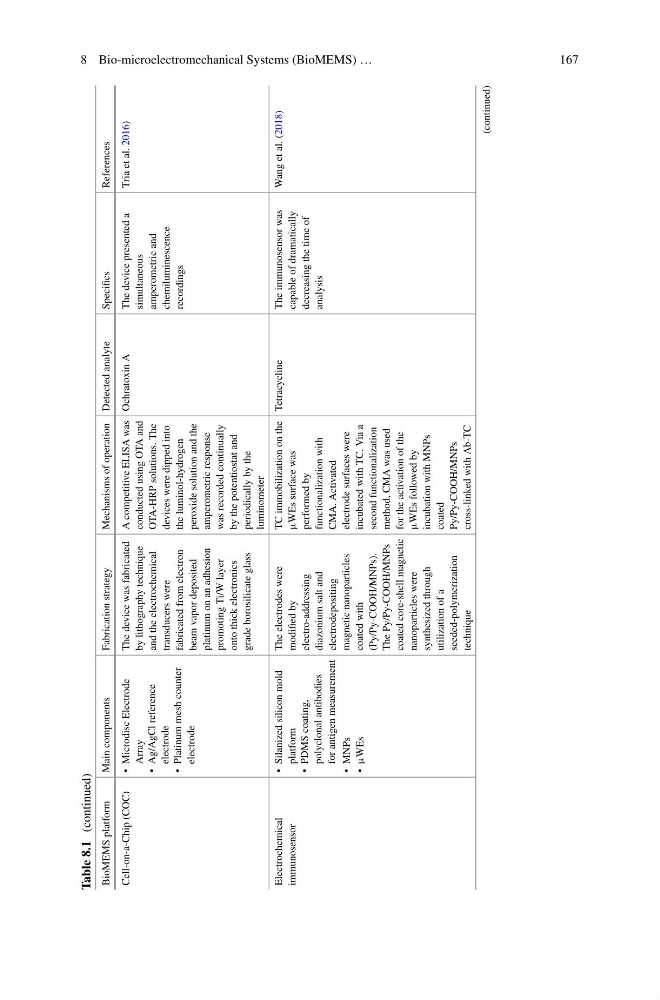

Table 8.1
(continued)
BioMEMS platform
Main components
Fabrication strategy
Mechanisms of operation Detected analyte
Specifics
References
Cell-on-a-Chip (COC)
• Microdisc Electrode
Array
• Ag/AgCl reference
electrode
• Platinum mesh counter
electrode
The device was fabricated
by lithography technique
and the electrochemical
transducers were
fabricated from electron
beam vapor deposited
platinum on an adhesion
promoting Ti/W layer
onto thick electronics
grade borosilicate glass
A competitive ELISA was
conducted using OTA and
OTA-HRP solutions. The
devices were dipped into
the luminol-hydrogen
peroxide solution and the
amperometric response
was recorded continually
by the potentiostat and
periodically by the
luminometer
Ochratoxin A
The device presented a
simultaneous
amperometric and
chemiluminescence
recordings
Tria et al. 2016)
Electrochemical
immunosensor
• Silanized silicon mold
platform
• PDMS coating,
polyclonal antibodies
for antigen measurement
• MNPs
•
µWEs
The electrodes were
modified by
electro-addressing
diazonium salt and
electrodepositing
magnetic nanoparticles
coated with
(Py/Py-COOH/MNPs).
The Py/Py-COOH/MNPs
coated core-shell magnetic
nanoparticles were
synthesized through
utilization of a
seeded-polymerization
technique
TC immobilization on the
µWEs surface was
performed by
functionalization with
CMA. Activated
electrode surfaces were
incubated with TC. Via a
second functionalization
method, CMA was used
for the activation of the
µWEs followed by
incubation with MNPs
coated
Py/Py-COOH/MNPs
cross-linked with Ab-TC
Tetracycline
The immunosensor was
capable of dramatically
decreasing the time of
analysis
Wang et al. (2018)
(continued)
