11 Nonlinear Dynamics of Circuits with Mem-Elements

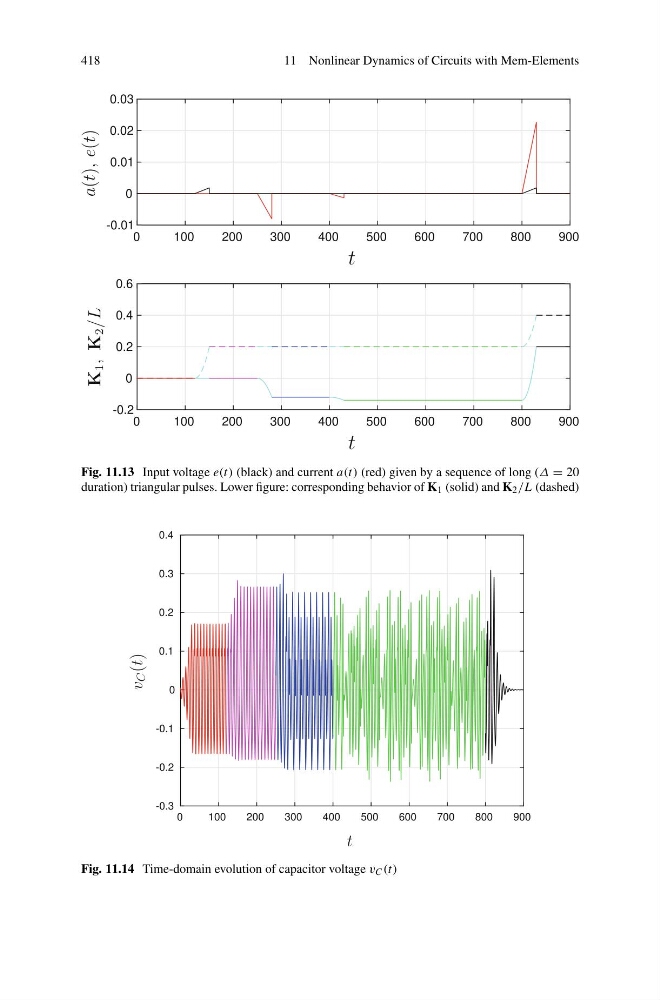

Fig. 11.13 Input voltage e(t) (black) and current a(t) (red) given by a sequence of long (Δ = 20
duration) triangular pulses. Lower figure: corresponding behavior of K 1 (solid) and K 2 /L (dashed)
Fig. 11.14 Time-domain evolution of capacitor voltage v C (t)
