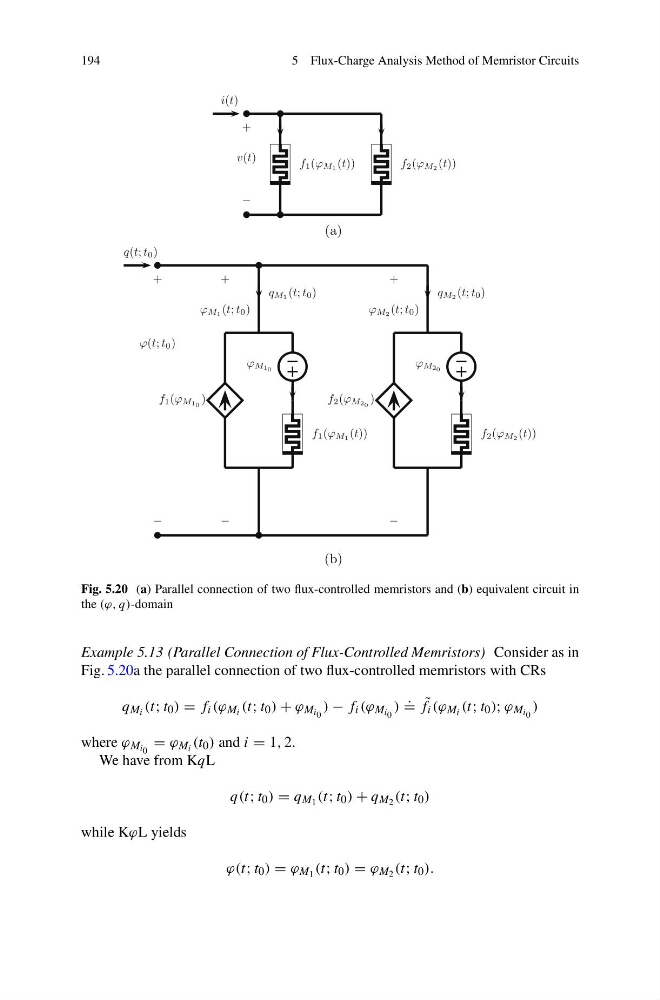

Fig. 5.20 (a) Parallel connection of two flux-controlled memristors and (b) equivalent circuit in
the (ϕ, q)-domain
Example 5.13 (Parallel Connection of Flux-Controlled Memristors) Consider as in
Fig. 5.20a the parallel connection of two flux-controlled memristors with CRs
q M i (t; t 0 ) = f i (ϕ M i (t; t 0 ) + ϕ M i 0 ) − f i (ϕ M i 0 )
.
= ˜
f i (ϕ M i (t; t 0 ); ϕ M i 0 )
where ϕ M i 0 = ϕ M i (t 0 ) and i = 1, 2.
We have from KqL
q(t; t 0 ) = q M 1 (t; t 0 ) + q M 2 (t; t 0 )
while KϕL yields
ϕ(t; t 0 ) = ϕ M 1 (t; t 0 ) = ϕ M 2 (t; t 0 ).
