22.3.2 The Software Characteristics and Peculiarities
The software was developed in a Microsoft “framework.NET” environment in C#
language. As shown in Fig. 22.4, it allows to visualize the image as registered by the

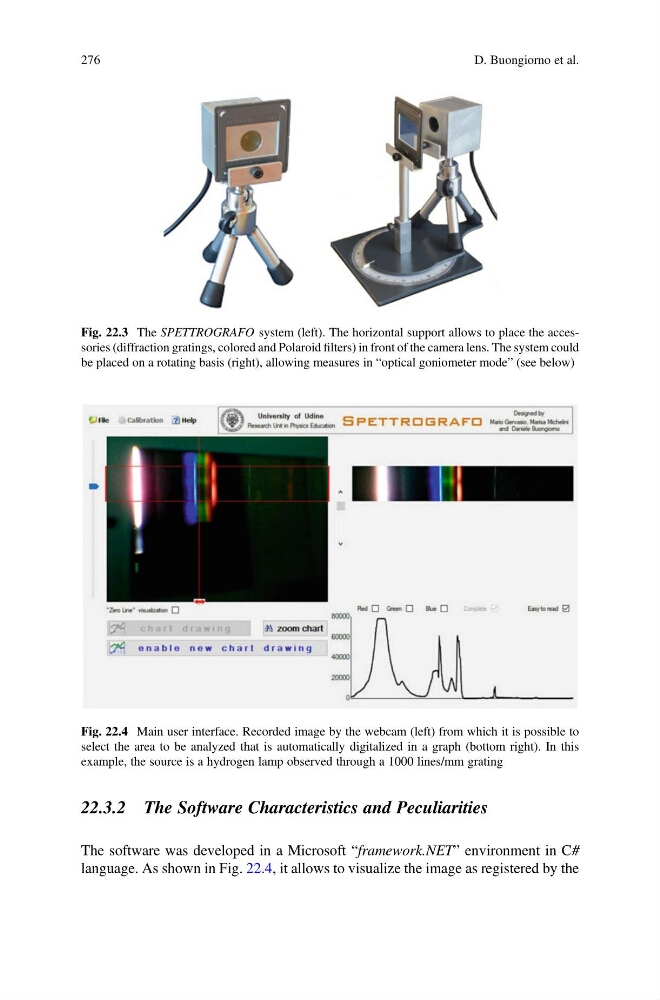

Fig. 22.3 The SPETTROGRAFO system (left). The horizontal support allows to place the accessories (diffraction gratings, colored and Polaroid filters) in front of the camera lens. The system could
be placed on a rotating basis (right), allowing measures in “optical goniometer mode” (see below)
Fig. 22.4 Main user interface. Recorded image by the webcam (left) from which it is possible to
select the area to be analyzed that is automatically digitalized in a graph (bottom right). In this
example, the source is a hydrogen lamp observed through a 1000 lines/mm grating
276
D. Buongiorno et al.
