6. FCC and Primitive (For All Lattices)
The axial relationships between the translation vectors of fcc and its primitive unit
cells are shown in Fig. 5.6. Let us consider a crystal plane which is referred to as
(hkl) in the primitive system of axes a 1 , b 1 , c 1 and (HKL) in fcc system of axes
a 2 , b 2 , c 2 . The relationships between the two sets of axes are:
a 2 ¼ a 1 þ b 1 À c 1
b 2 ¼ a 1 À b 1 + c 1
c 2 ¼ À a 1 + b 1 + c 1
Now, using these equations, we can write the following transformation equations
H ¼ 1h þ 1k À 1l
K ¼ 1h À 1k þ 1l
L ¼ À1h þ 1k þ 1l
ð5:25Þ
The matrix form of these equations is
H
K
L
0
@
1
A =
1
1 À1
1 À1 1
À1 1
1
0
@
1
A
h
k
l
0
@
1
A
ð5:26Þ
The determinant of the matrix in Eq. 5.26, D ¼ 4: Therefore using Eq. 5.3, we
can obtain the volume relationship between the two unit cells

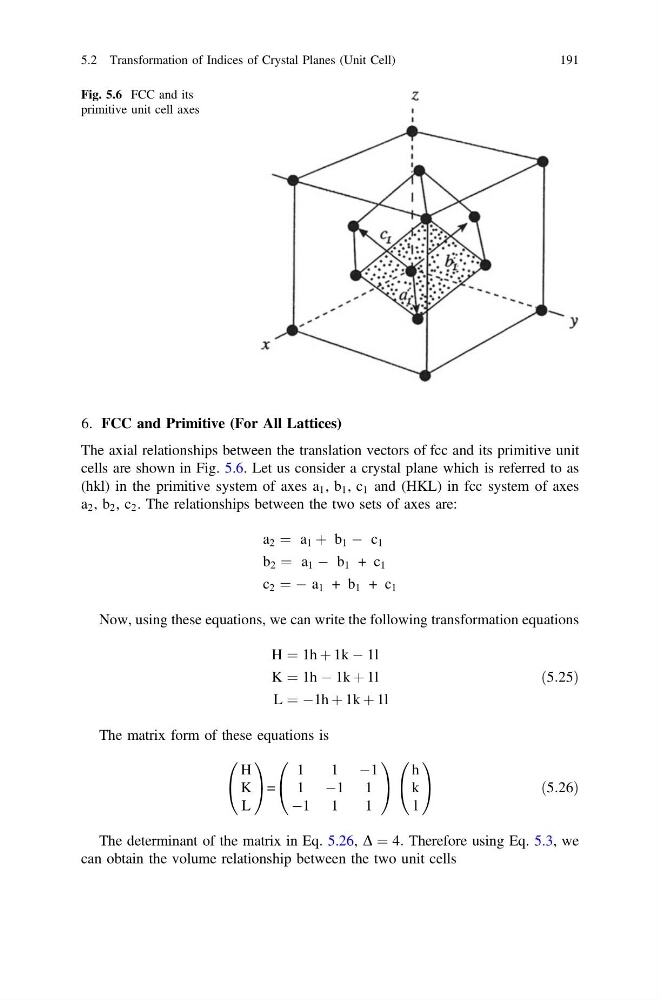

Fig. 5.6 FCC and its
primitive unit cell axes
