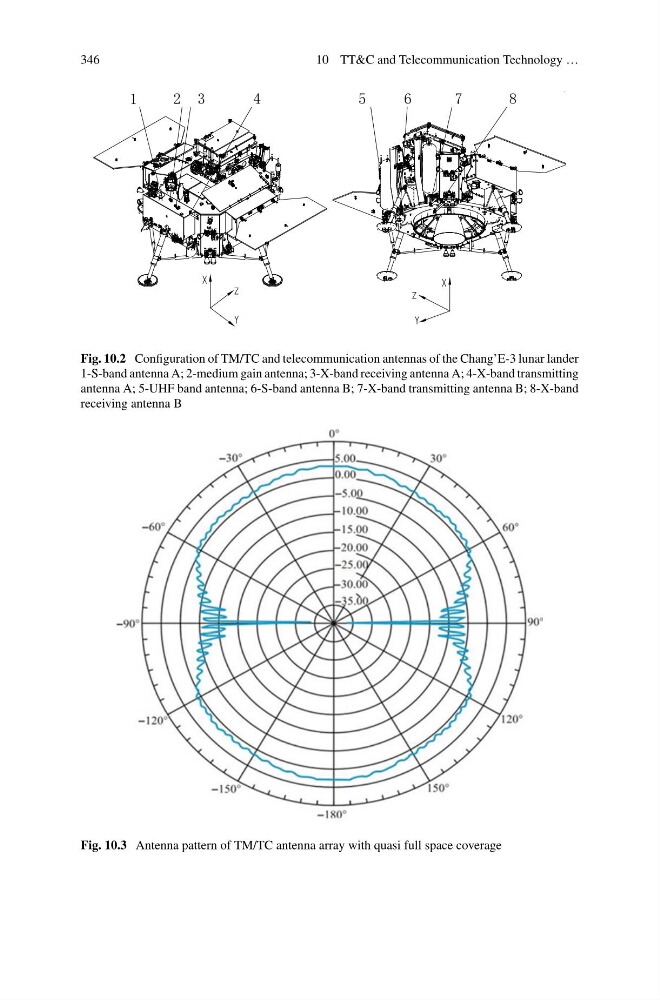

Fig. 10.2 Configuration of TM/TC and telecommunication antennas of the Chang’E-3 lunar lander
1-S-band antenna A; 2-medium gain antenna; 3-X-band receiving antenna A; 4-X-band transmitting
antenna A; 5-UHF band antenna; 6-S-band antenna B; 7-X-band transmitting antenna B; 8-X-band
receiving antenna B
Fig. 10.3 Antenna pattern of TM/TC antenna array with quasi full space coverage
