3.9 Analysis and Simulation of Landing Stability
93

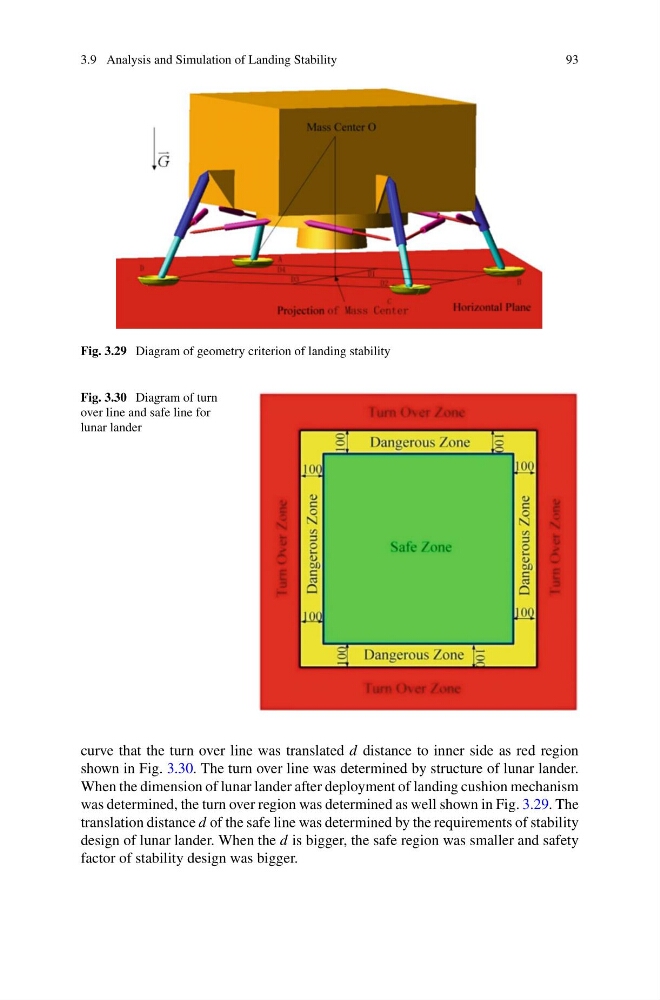

Fig. 3.29 Diagram of geometry criterion of landing stability
Fig. 3.30 Diagram of turn
over line and safe line for
lunar lander
curve that the turn over line was translated d distance to inner side as red region
shown in Fig. 3.30. The turn over line was determined by structure of lunar lander.
When the dimension of lunar lander after deployment of landing cushion mechanism
was determined, the turn over region was determined as well shown in Fig. 3.29. The
translation distance d of the safe line was determined by the requirements of stability
design of lunar lander. When the d is bigger, the safe region was smaller and safety
factor of stability design was bigger.
