86
Figure 5.10 shows the process route of the biogas power plant using rice straw
feedstock, which is located at Fazilka in Punjab, India. Rice straw is fed into a chopper to be sheared off. The sheared rice straw is mixed with 25% cow dung in weight
and pumped into the first stage 2000-m
3
digester, which is maintained at
35 °C. Retention time (RT) of the substrate in the first anaerobic digestion (AD)
stage is 20 days and then conveyed into the second-stage digester, also 2000 m
3
and
maintained at 35 °C with an RT of 20 days. The biogas is collected through a

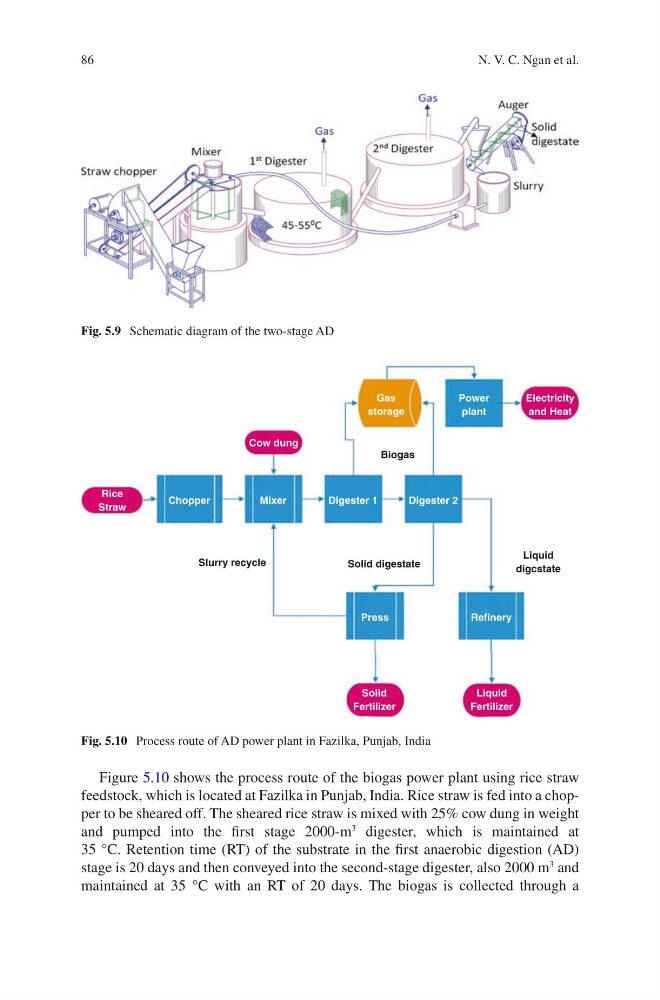

Fig. 5.9 Schematic diagram of the two-stage AD
Gas
storage
Rice
Straw
Cow dung
Chopper
Solid
Fertilizer
Liquid
Fertilizer
Mixer
Digester 1
Press
Refinery
Digester 2
Biogas
Slurry recycle
Solid digestate
Liquid
digcstate
Power
plant
Electricity
and Heat
Fig. 5.10 Process route of AD power plant in Fazilka, Punjab, India
N. V. C. Ngan et al.
