28.2.1 System Building

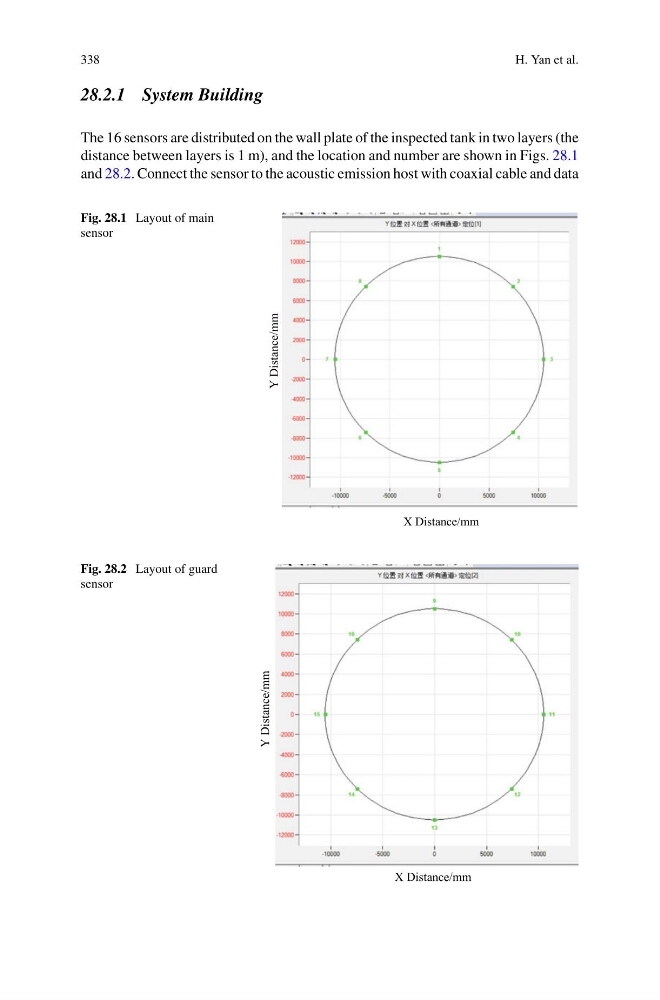

The 16 sensors are distributed on the wall plate of the inspected tank in two layers (the
distance between layers is 1 m), and the location and number are shown in Figs. 28.1
and 28.2. Connect the sensor to the acoustic emission host with coaxial cable and data
Fig. 28.1 Layout of main
sensor
Y Distance/mm
X Distance/mm
Fig. 28.2 Layout of guard
sensor
Y Distance/mm
X Distance/mm
