4.4 Model of Chlorine Ion in a Radiation Field
117

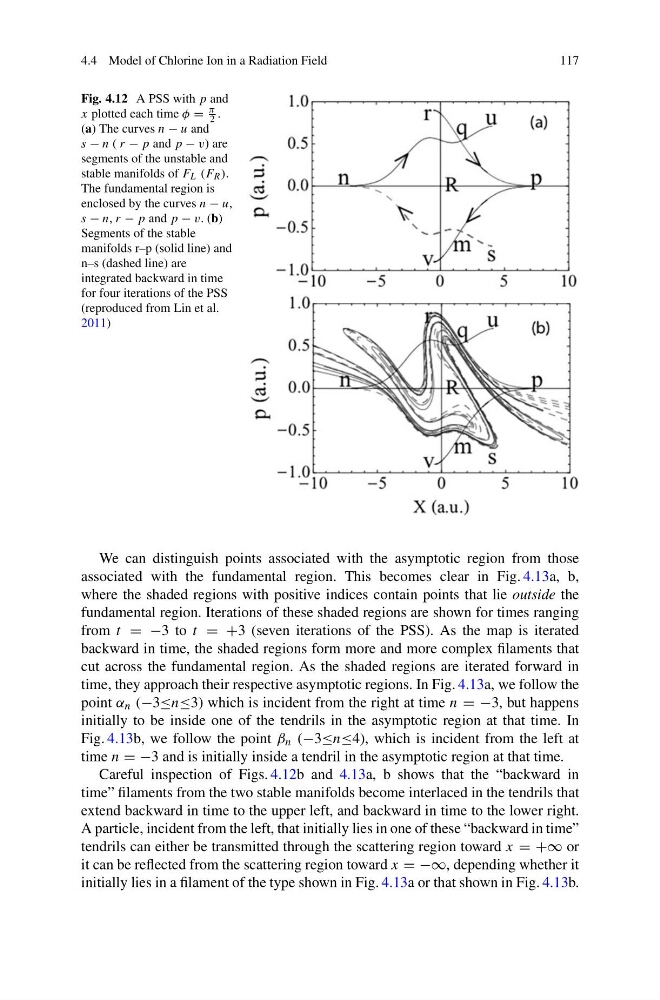

Fig. 4.12 A PSS with p and
x plotted each time φ =
π
2 .
(a) The curves n − u and
s − n ( r − p and p − v) are
segments of the unstable and
stable manifolds of F L (F R ).
The fundamental region is
enclosed by the curves n − u,
s − n, r − p and p − v. (b)
Segments of the stable
manifolds r–p (solid line) and
n–s (dashed line) are
integrated backward in time
for four iterations of the PSS
(reproduced from Lin et al.
2011)
