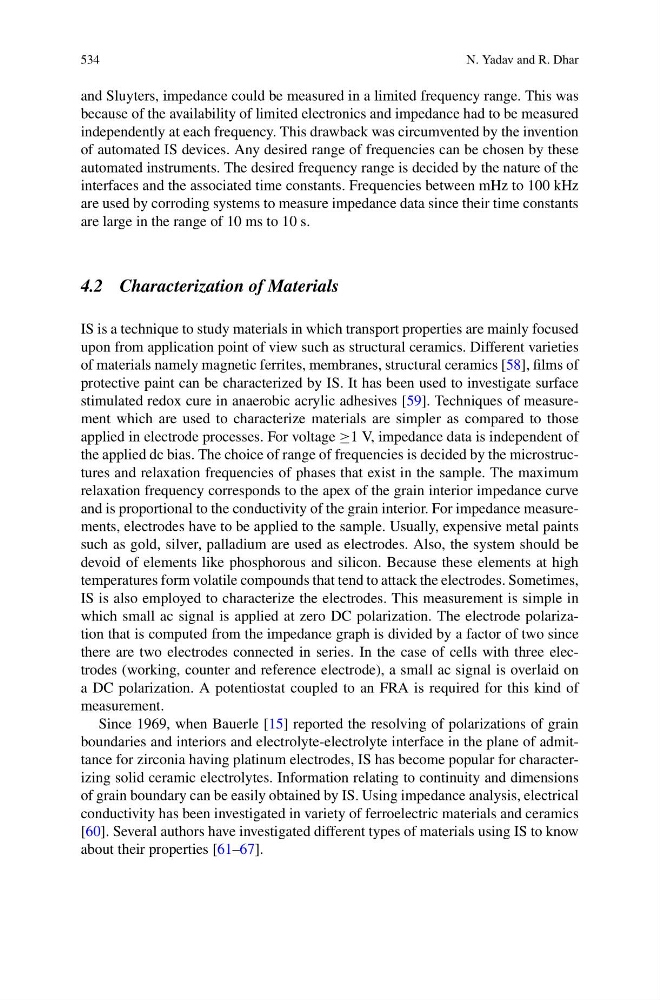

534
N. Yadav and R. Dhar
and Sluyters, impedance could be measured in a limited frequency range. This was
because of the availability of limited electronics and impedance had to be measured
independently at each frequency. This drawback was circumvented by the invention
of automated IS devices. Any desired range of frequencies can be chosen by these
automated instruments. The desired frequency range is decided by the nature of the
interfaces and the associated time constants. Frequencies between mHz to 100 kHz
are used by corroding systems to measure impedance data since their time constants
are large in the range of 10 ms to 10 s.
4.2 Characterization of Materials
IS is a technique to study materials in which transport properties are mainly focused
upon from application point of view such as structural ceramics. Different varieties
of materials namely magnetic ferrites, membranes, structural ceramics [58], films of
protective paint can be characterized by IS. It has been used to investigate surface
stimulated redox cure in anaerobic acrylic adhesives [59]. Techniques of measurement which are used to characterize materials are simpler as compared to those
applied in electrode processes. For voltage ≥1 V, impedance data is independent of
the applied dc bias. The choice of range of frequencies is decided by the microstructures and relaxation frequencies of phases that exist in the sample. The maximum
relaxation frequency corresponds to the apex of the grain interior impedance curve
and is proportional to the conductivity of the grain interior. For impedance measurements, electrodes have to be applied to the sample. Usually, expensive metal paints
such as gold, silver, palladium are used as electrodes. Also, the system should be
devoid of elements like phosphorous and silicon. Because these elements at high
temperatures form volatile compounds that tend to attack the electrodes. Sometimes,
IS is also employed to characterize the electrodes. This measurement is simple in
which small ac signal is applied at zero DC polarization. The electrode polarization that is computed from the impedance graph is divided by a factor of two since
there are two electrodes connected in series. In the case of cells with three electrodes (working, counter and reference electrode), a small ac signal is overlaid on
a DC polarization. A potentiostat coupled to an FRA is required for this kind of
measurement.
Since 1969, when Bauerle [15] reported the resolving of polarizations of grain
boundaries and interiors and electrolyte-electrolyte interface in the plane of admittance for zirconia having platinum electrodes, IS has become popular for characterizing solid ceramic electrolytes. Information relating to continuity and dimensions
of grain boundary can be easily obtained by IS. Using impedance analysis, electrical
conductivity has been investigated in variety of ferroelectric materials and ceramics
[60]. Several authors have investigated different types of materials using IS to know
about their properties [61–67].
