2.7.2 Piston Withdrawal at Constant Speed
Let us now apply the above considerations to the case where the piston is withdrawn
at a constant speed u 0 , hence, x p (t 0 ) ¼ À u 0 t 0 and u p (t 0 ) ¼ À u 0 so that Eq. (2.70)
becomes
x t
ð Þ ¼ Àu 0 t 0 þ c 0 À
γ þ 1
2
u 0
h
i
t À t 0
ð
Þ,
ð2:71Þ
which applies to all positive characteristics leaving the piston and all of these
characteristics have
u ¼ Àu 0 and c ¼ c 0 À
γ À 1
2
u 0
ð2:72Þ
with identical slopes of
c 0 À
γ þ 1
2
u 0 :
The first characteristic leaves the piston at t 0 ¼ 0 and Eq. (2.71) gives
x t
ð Þ ¼ c 0 À
γ þ 1
2
u 0
h
i
t
ð2:73Þ
and the region ℜ3 to the left of this characteristic as shown in Fig. 2.17 is a uniform
region according to Eq. (2.72) and the negative characteristics are also straight lines.
One can observe from Fig. 2.17 that there is a region ℜ2 with no positive
characteristics as Eq. (2.71) only applies to positive characteristics leaving the
piston; however, negative characteristics penetrate this region as Eq. (2.66) still

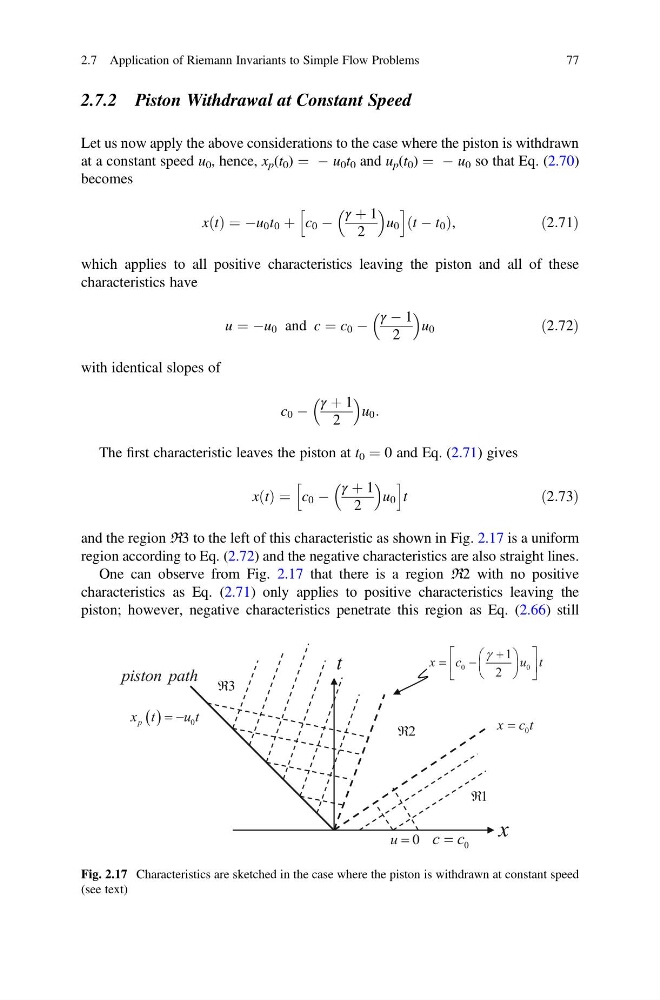

Fig. 2.17 Characteristics are sketched in the case where the piston is withdrawn at constant speed
