3.5 Supplementary Problems
87

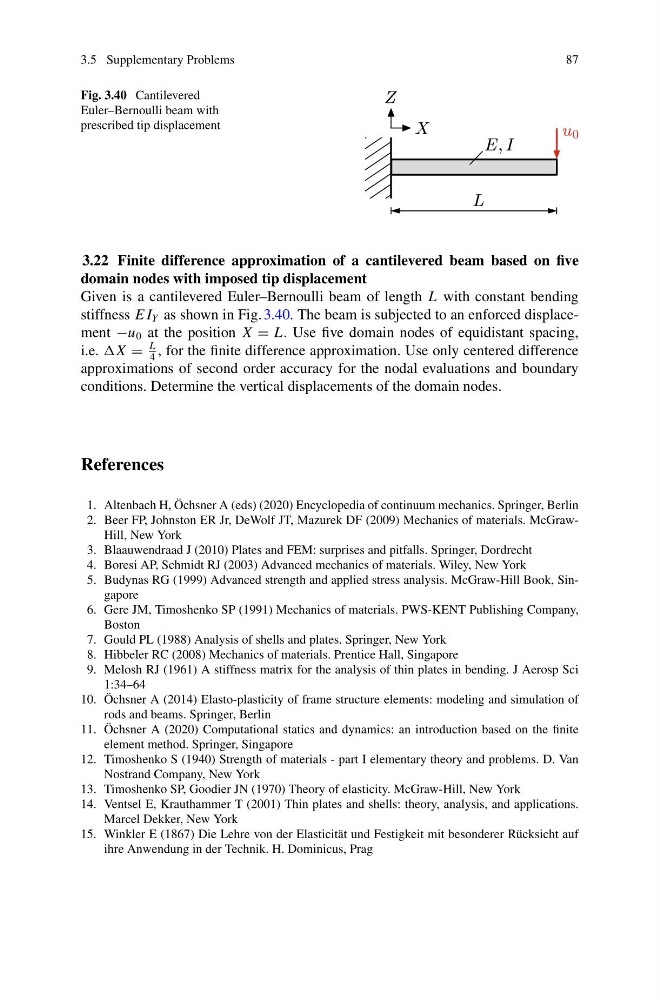

Fig. 3.40 Cantilevered
Euler–Bernoulli beam with
prescribed tip displacement
3.22 Finite difference approximation of a cantilevered beam based on five
domain nodes with imposed tip displacement
Given is a cantilevered Euler–Bernoulli beam of length L with constant bending
stiffness E I Y as shown in Fig. 3.40. The beam is subjected to an enforced displacement −u 0 at the position X = L. Use five domain nodes of equidistant spacing,
i.e. =
L
4
, for the finite difference approximation. Use only centered difference
approximations of second order accuracy for the nodal evaluations and boundary
conditions. Determine the vertical displacements of the domain nodes.
