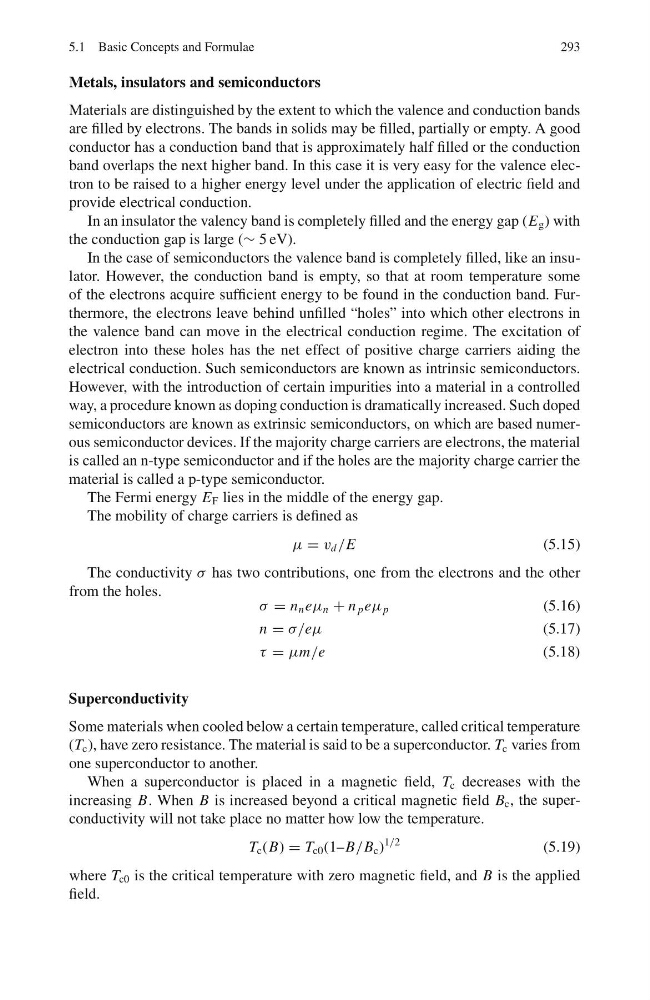

5.1 Basic Concepts and Formulae
293
Metals, insulators and semiconductors
Materials are distinguished by the extent to which the valence and conduction bands
are filled by electrons. The bands in solids may be filled, partially or empty. A good
conductor has a conduction band that is approximately half filled or the conduction
band overlaps the next higher band. In this case it is very easy for the valence electron to be raised to a higher energy level under the application of electric field and
provide electrical conduction.
In an insulator the valency band is completely filled and the energy gap (E g ) with
the conduction gap is large (∼ 5 eV).
In the case of semiconductors the valence band is completely filled, like an insulator. However, the conduction band is empty, so that at room temperature some
of the electrons acquire sufficient energy to be found in the conduction band. Furthermore, the electrons leave behind unfilled “holes” into which other electrons in
the valence band can move in the electrical conduction regime. The excitation of
electron into these holes has the net effect of positive charge carriers aiding the
electrical conduction. Such semiconductors are known as intrinsic semiconductors.
However, with the introduction of certain impurities into a material in a controlled
way, a procedure known as doping conduction is dramatically increased. Such doped
semiconductors are known as extrinsic semiconductors, on which are based numerous semiconductor devices. If the majority charge carriers are electrons, the material
is called an n-type semiconductor and if the holes are the majority charge carrier the
material is called a p-type semiconductor.
The Fermi energy E F lies in the middle of the energy gap.
The mobility of charge carriers is defined as
μ = v d /E
(5.15)
The conductivity σ has two contributions, one from the electrons and the other
from the holes.
σ = n n eμ n + n p eμ p
(5.16)
n = σ/eμ
(5.17)
τ = μm/e
(5.18)
Superconductivity
Some materials when cooled below a certain temperature, called critical temperature
(T c ), have zero resistance. The material is said to be a superconductor. T c varies from
one superconductor to another.
When a superconductor is placed in a magnetic field, T c decreases with the
increasing B. When B is increased beyond a critical magnetic field B c , the superconductivity will not take place no matter how low the temperature.
T c (B) = T c0 (1–B/B c )
1/2
(5.19)
where T c0 is the critical temperature with zero magnetic field, and B is the applied
field.
