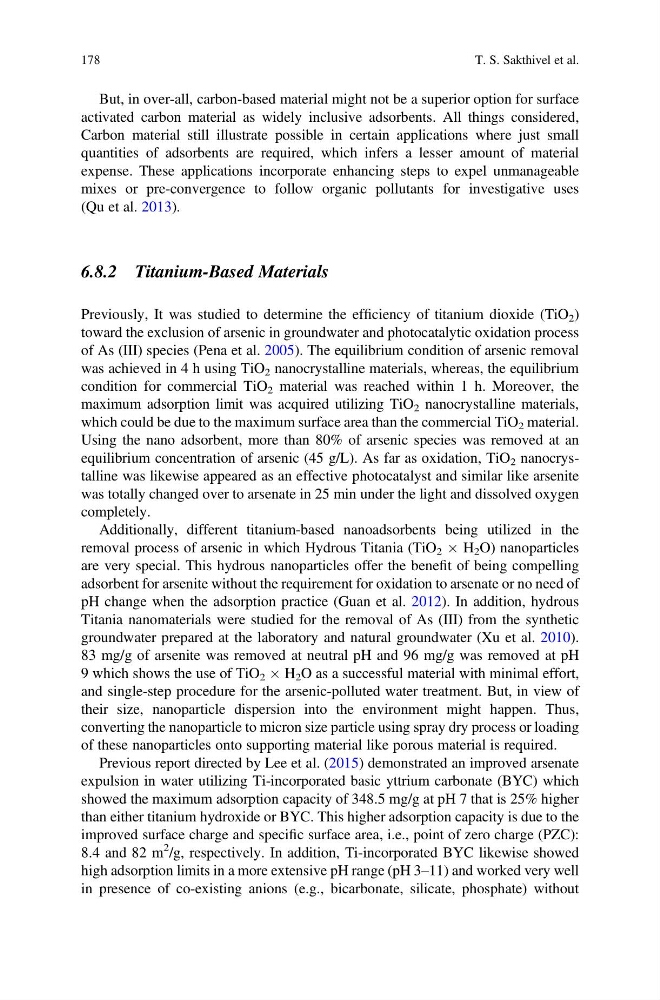

But, in over-all, carbon-based material might not be a superior option for surface
activated carbon material as widely inclusive adsorbents. All things considered,
Carbon material still illustrate possible in certain applications where just small
quantities of adsorbents are required, which infers a lesser amount of material
expense. These applications incorporate enhancing steps to expel unmanageable
mixes or pre-convergence to follow organic pollutants for investigative uses
(Qu et al. 2013).
6.8.2 Titanium-Based Materials
Previously, It was studied to determine the efficiency of titanium dioxide (TiO 2 )
toward the exclusion of arsenic in groundwater and photocatalytic oxidation process
of As (III) species (Pena et al. 2005). The equilibrium condition of arsenic removal
was achieved in 4 h using TiO 2 nanocrystalline materials, whereas, the equilibrium
condition for commercial TiO 2 material was reached within 1 h. Moreover, the
maximum adsorption limit was acquired utilizing TiO 2 nanocrystalline materials,
which could be due to the maximum surface area than the commercial TiO 2 material.
Using the nano adsorbent, more than 80% of arsenic species was removed at an
equilibrium concentration of arsenic (45 g/L). As far as oxidation, TiO 2 nanocrystalline was likewise appeared as an effective photocatalyst and similar like arsenite
was totally changed over to arsenate in 25 min under the light and dissolved oxygen
completely.
Additionally, different titanium-based nanoadsorbents being utilized in the
removal process of arsenic in which Hydrous Titania (TiO 2 Â H 2 O) nanoparticles
are very special. This hydrous nanoparticles offer the benefit of being compelling
adsorbent for arsenite without the requirement for oxidation to arsenate or no need of
pH change when the adsorption practice (Guan et al. 2012). In addition, hydrous
Titania nanomaterials were studied for the removal of As (III) from the synthetic
groundwater prepared at the laboratory and natural groundwater (Xu et al. 2010).
83 mg/g of arsenite was removed at neutral pH and 96 mg/g was removed at pH
9 which shows the use of TiO 2 Â H 2 O as a successful material with minimal effort,
and single-step procedure for the arsenic-polluted water treatment. But, in view of
their size, nanoparticle dispersion into the environment might happen. Thus,
converting the nanoparticle to micron size particle using spray dry process or loading
of these nanoparticles onto supporting material like porous material is required.
Previous report directed by Lee et al. (2015) demonstrated an improved arsenate
expulsion in water utilizing Ti-incorporated basic yttrium carbonate (BYC) which
showed the maximum adsorption capacity of 348.5 mg/g at pH 7 that is 25% higher
than either titanium hydroxide or BYC. This higher adsorption capacity is due to the
improved surface charge and specific surface area, i.e., point of zero charge (PZC):
8.4 and 82 m
2 /g, respectively. In addition, Ti-incorporated BYC likewise showed
high adsorption limits in a more extensive pH range (pH 3–11) and worked very well
in presence of co-existing anions (e.g., bicarbonate, silicate, phosphate) without
178
T. S. Sakthivel et al.
activated carbon material as widely inclusive adsorbents. All things considered,
Carbon material still illustrate possible in certain applications where just small
quantities of adsorbents are required, which infers a lesser amount of material
expense. These applications incorporate enhancing steps to expel unmanageable
mixes or pre-convergence to follow organic pollutants for investigative uses
(Qu et al. 2013).
6.8.2 Titanium-Based Materials
Previously, It was studied to determine the efficiency of titanium dioxide (TiO 2 )
toward the exclusion of arsenic in groundwater and photocatalytic oxidation process
of As (III) species (Pena et al. 2005). The equilibrium condition of arsenic removal
was achieved in 4 h using TiO 2 nanocrystalline materials, whereas, the equilibrium
condition for commercial TiO 2 material was reached within 1 h. Moreover, the
maximum adsorption limit was acquired utilizing TiO 2 nanocrystalline materials,
which could be due to the maximum surface area than the commercial TiO 2 material.
Using the nano adsorbent, more than 80% of arsenic species was removed at an
equilibrium concentration of arsenic (45 g/L). As far as oxidation, TiO 2 nanocrystalline was likewise appeared as an effective photocatalyst and similar like arsenite
was totally changed over to arsenate in 25 min under the light and dissolved oxygen
completely.
Additionally, different titanium-based nanoadsorbents being utilized in the
removal process of arsenic in which Hydrous Titania (TiO 2 Â H 2 O) nanoparticles
are very special. This hydrous nanoparticles offer the benefit of being compelling
adsorbent for arsenite without the requirement for oxidation to arsenate or no need of
pH change when the adsorption practice (Guan et al. 2012). In addition, hydrous
Titania nanomaterials were studied for the removal of As (III) from the synthetic
groundwater prepared at the laboratory and natural groundwater (Xu et al. 2010).
83 mg/g of arsenite was removed at neutral pH and 96 mg/g was removed at pH
9 which shows the use of TiO 2 Â H 2 O as a successful material with minimal effort,
and single-step procedure for the arsenic-polluted water treatment. But, in view of
their size, nanoparticle dispersion into the environment might happen. Thus,
converting the nanoparticle to micron size particle using spray dry process or loading
of these nanoparticles onto supporting material like porous material is required.
Previous report directed by Lee et al. (2015) demonstrated an improved arsenate
expulsion in water utilizing Ti-incorporated basic yttrium carbonate (BYC) which
showed the maximum adsorption capacity of 348.5 mg/g at pH 7 that is 25% higher
than either titanium hydroxide or BYC. This higher adsorption capacity is due to the
improved surface charge and specific surface area, i.e., point of zero charge (PZC):
8.4 and 82 m
2 /g, respectively. In addition, Ti-incorporated BYC likewise showed
high adsorption limits in a more extensive pH range (pH 3–11) and worked very well
in presence of co-existing anions (e.g., bicarbonate, silicate, phosphate) without
178
T. S. Sakthivel et al.
