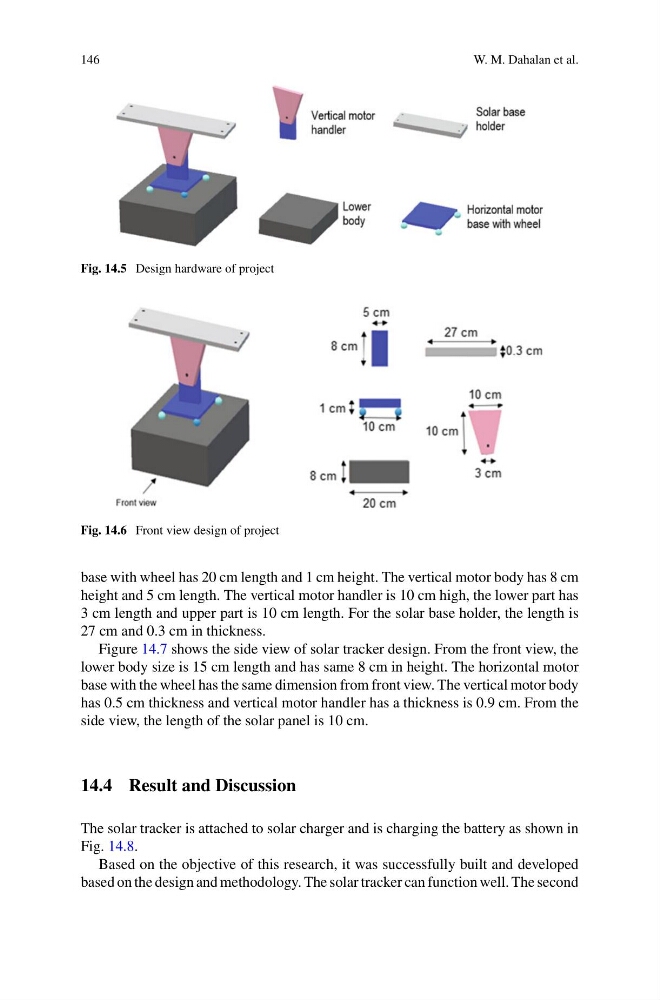

Fig. 14.5 Design hardware of project
Fig. 14.6 Front view design of project
base with wheel has 20 cm length and 1 cm height. The vertical motor body has 8 cm
height and 5 cm length. The vertical motor handler is 10 cm high, the lower part has
3 cm length and upper part is 10 cm length. For the solar base holder, the length is
27 cm and 0.3 cm in thickness.
Figure 14.7 shows the side view of solar tracker design. From the front view, the
lower body size is 15 cm length and has same 8 cm in height. The horizontal motor
base with the wheel has the same dimension from front view. The vertical motor body
has 0.5 cm thickness and vertical motor handler has a thickness is 0.9 cm. From the
side view, the length of the solar panel is 10 cm.
14.4 Result and Discussion
The solar tracker is attached to solar charger and is charging the battery as shown in
Fig. 14.8.
Based on the objective of this research, it was successfully built and developed
based on the design and methodology. The solar tracker can function well. The second
