86
N. Khalid et al.

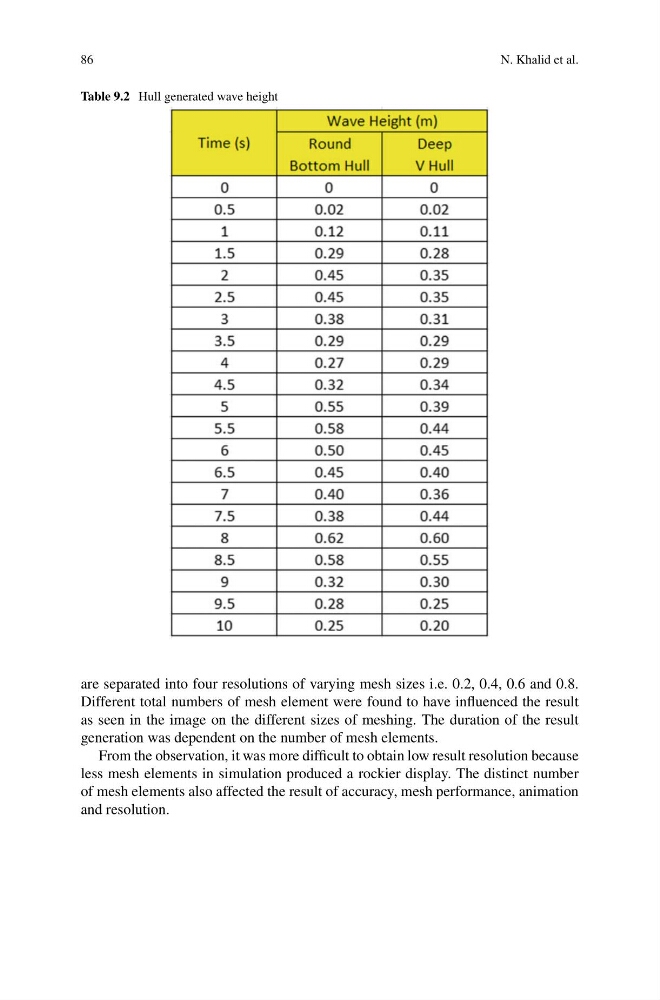

Table 9.2 Hull generated wave height
are separated into four resolutions of varying mesh sizes i.e. 0.2, 0.4, 0.6 and 0.8.
Different total numbers of mesh element were found to have influenced the result
as seen in the image on the different sizes of meshing. The duration of the result
generation was dependent on the number of mesh elements.
From the observation, it was more difficult to obtain low result resolution because
less mesh elements in simulation produced a rockier display. The distinct number
of mesh elements also affected the result of accuracy, mesh performance, animation
and resolution.
