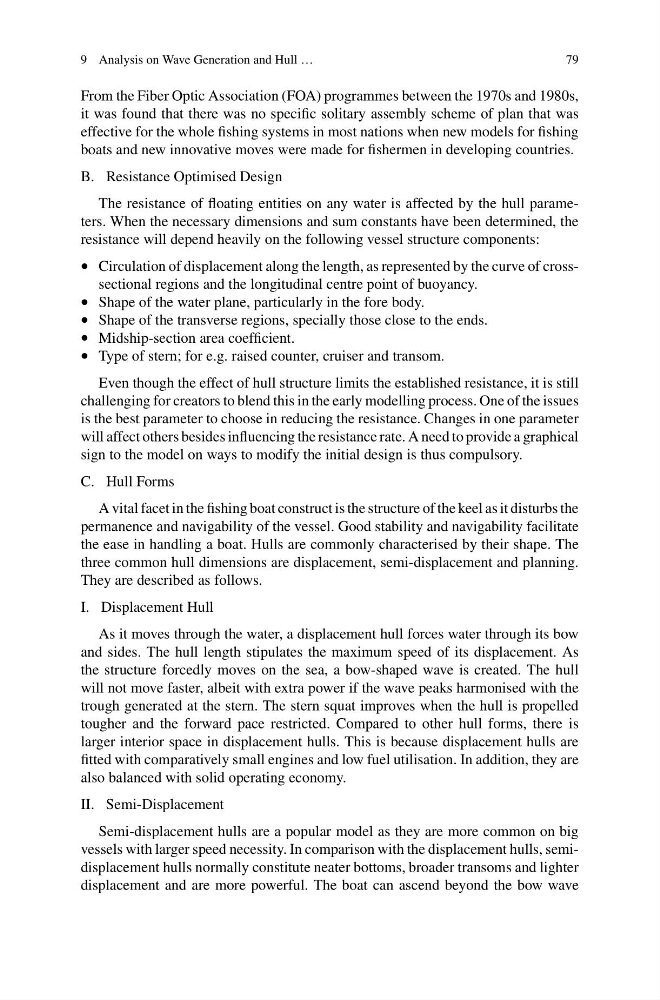

9 Analysis on Wave Generation and Hull …
79
From the Fiber Optic Association (FOA) programmes between the 1970s and 1980s,
it was found that there was no specific solitary assembly scheme of plan that was
effective for the whole fishing systems in most nations when new models for fishing
boats and new innovative moves were made for fishermen in developing countries.
B. Resistance Optimised Design
The resistance of floating entities on any water is affected by the hull parameters. When the necessary dimensions and sum constants have been determined, the
resistance will depend heavily on the following vessel structure components:
• Circulation of displacement along the length, as represented by the curve of crosssectional regions and the longitudinal centre point of buoyancy.
• Shape of the water plane, particularly in the fore body.
• Shape of the transverse regions, specially those close to the ends.
• Midship-section area coefficient.
• Type of stern; for e.g. raised counter, cruiser and transom.
Even though the effect of hull structure limits the established resistance, it is still
challenging for creators to blend this in the early modelling process. One of the issues
is the best parameter to choose in reducing the resistance. Changes in one parameter
will affect others besides influencing the resistance rate. A need to provide a graphical
sign to the model on ways to modify the initial design is thus compulsory.
C. Hull Forms
A vital facet in the fishing boat construct is the structure of the keel as it disturbs the
permanence and navigability of the vessel. Good stability and navigability facilitate
the ease in handling a boat. Hulls are commonly characterised by their shape. The
three common hull dimensions are displacement, semi-displacement and planning.
They are described as follows.
I. Displacement Hull
As it moves through the water, a displacement hull forces water through its bow
and sides. The hull length stipulates the maximum speed of its displacement. As
the structure forcedly moves on the sea, a bow-shaped wave is created. The hull
will not move faster, albeit with extra power if the wave peaks harmonised with the
trough generated at the stern. The stern squat improves when the hull is propelled
tougher and the forward pace restricted. Compared to other hull forms, there is
larger interior space in displacement hulls. This is because displacement hulls are
fitted with comparatively small engines and low fuel utilisation. In addition, they are
also balanced with solid operating economy.
II. Semi-Displacement
Semi-displacement hulls are a popular model as they are more common on big
vessels with larger speed necessity. In comparison with the displacement hulls, semidisplacement hulls normally constitute neater bottoms, broader transoms and lighter
displacement and are more powerful. The boat can ascend beyond the bow wave
