Rarefied Flow Field Analysis on a Re-entry Vehicle
527

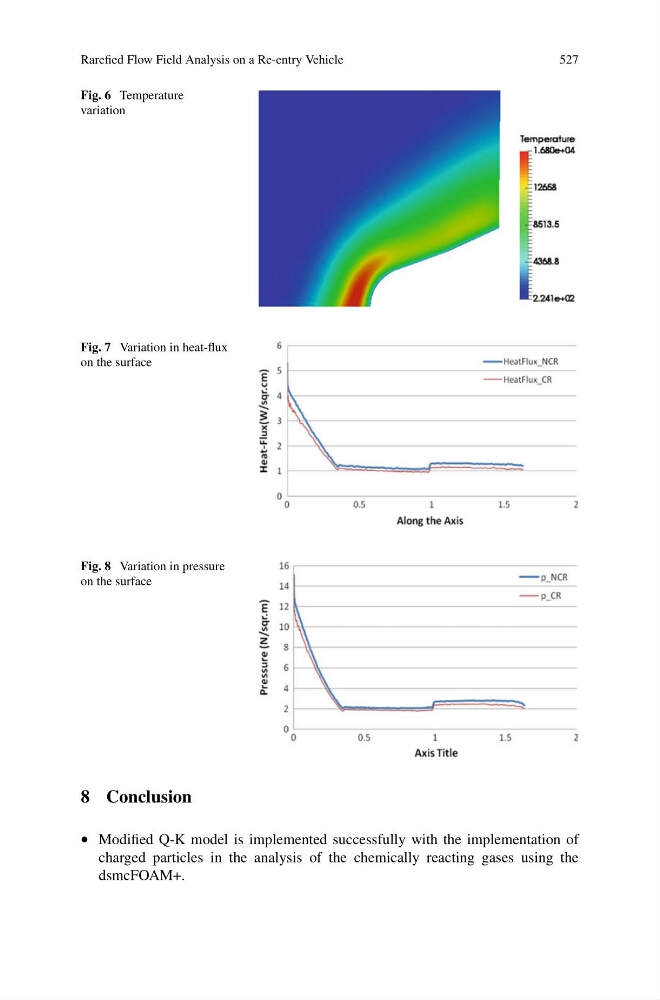

Fig. 6 Temperature
variation
Fig. 7 Variation in heat-flux
on the surface
Fig. 8 Variation in pressure
on the surface
8 Conclusion
• Modified Q-K model is implemented successfully with the implementation of
charged particles in the analysis of the chemically reacting gases using the
dsmcFOAM+.
