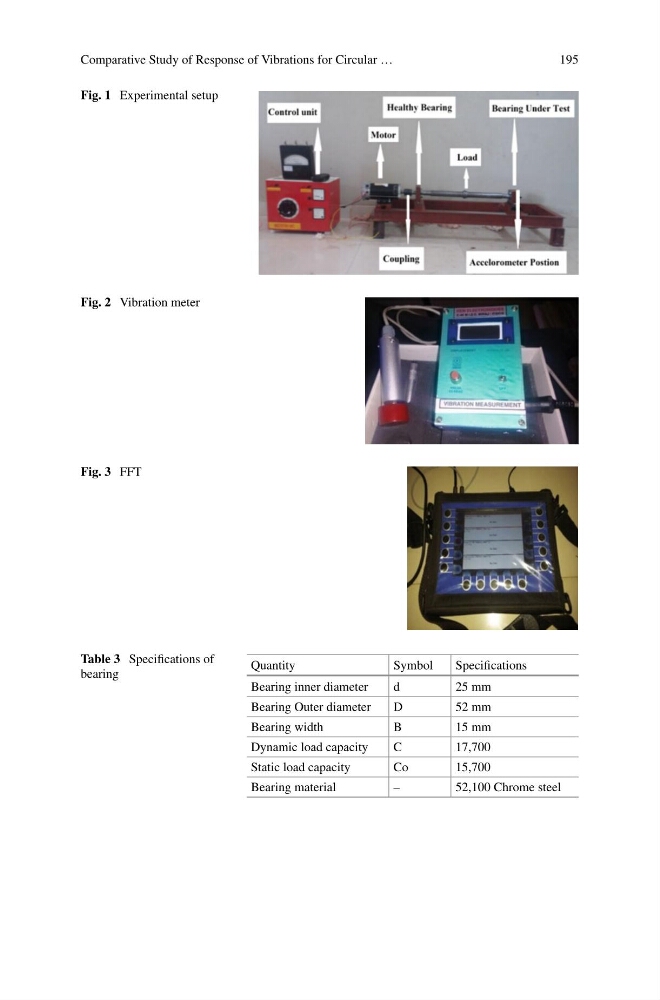

Comparative Study of Response of Vibrations for Circular …
195
Fig. 1 Experimental setup
Fig. 2 Vibration meter
Fig. 3 FFT
Table 3 Specifications of
bearing
Quantity
Symbol
Specifications
Bearing inner diameter
d
25 mm
Bearing Outer diameter
D
52 mm
Bearing width
B
15 mm
Dynamic load capacity
C
17,700
Static load capacity
Co
15,700
Bearing material
–
52,100 Chrome steel
