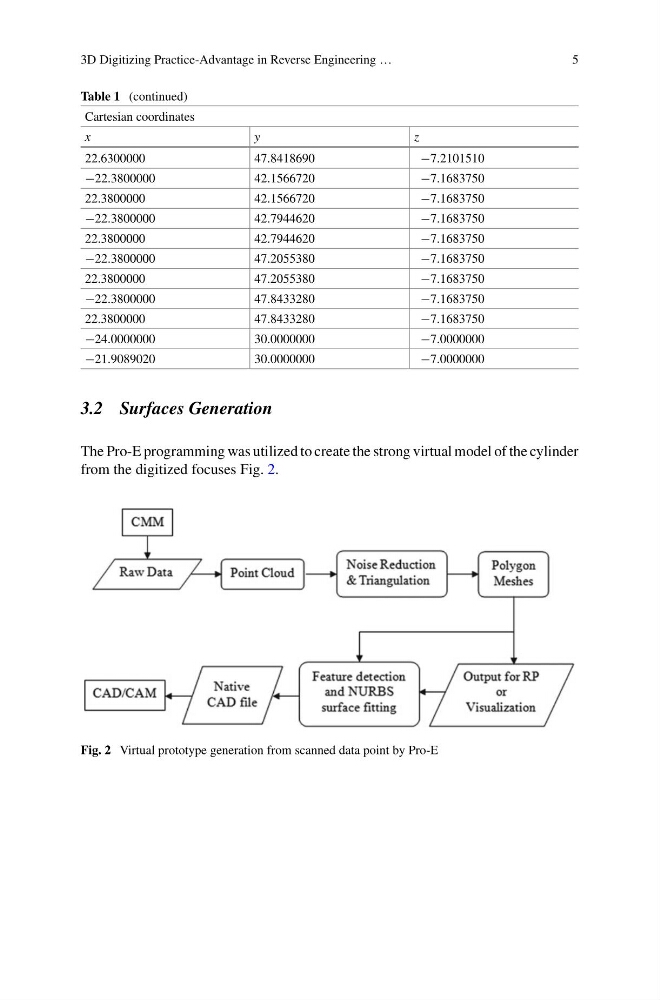

3D Digitizing Practice-Advantage in Reverse Engineering …
5
Table 1 (continued)
Cartesian coordinates
x
y
z
22.6300000
47.8418690
−7.2101510
−22.3800000
42.1566720
−7.1683750
22.3800000
42.1566720
−7.1683750
−22.3800000
42.7944620
−7.1683750
22.3800000
42.7944620
−7.1683750
−22.3800000
47.2055380
−7.1683750
22.3800000
47.2055380
−7.1683750
−22.3800000
47.8433280
−7.1683750
22.3800000
47.8433280
−7.1683750
−24.0000000
30.0000000
−7.0000000
−21.9089020
30.0000000
−7.0000000
3.2 Surfaces Generation
The Pro-E programming was utilized to create the strong virtual model of the cylinder
from the digitized focuses Fig. 2.
Fig. 2 Virtual prototype generation from scanned data point by Pro-E
