F. Sagan and M. P. Mitoraj

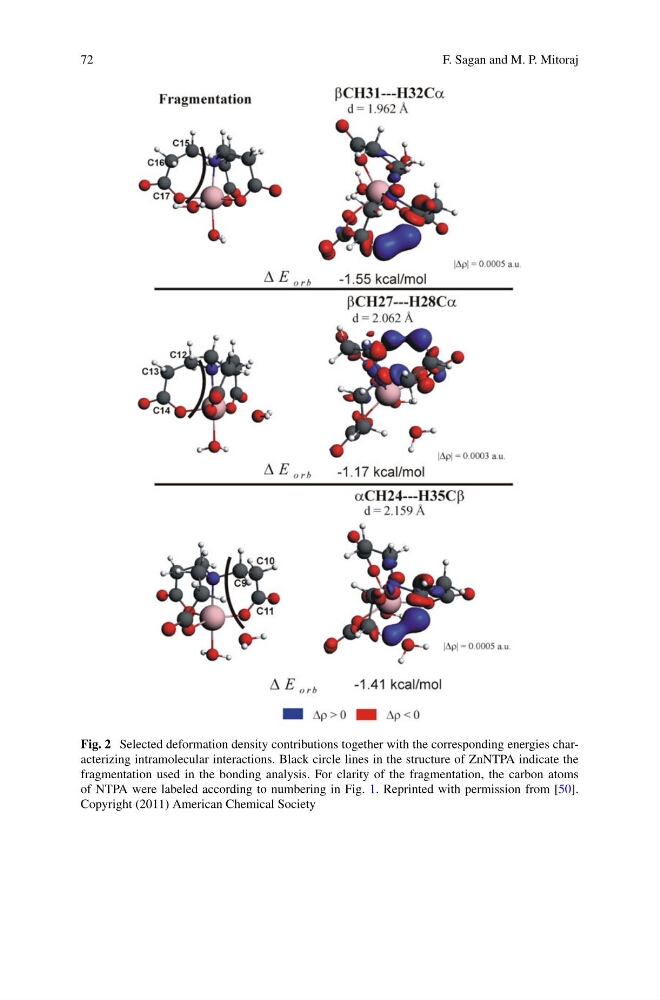

Fig. 2 Selected deformation density contributions together with the corresponding energies characterizing intramolecular interactions. Black circle lines in the structure of ZnNTPA indicate the
fragmentation used in the bonding analysis. For clarity of the fragmentation, the carbon atoms
of NTPA were labeled according to numbering in Fig. 1. Reprinted with permission from [50].
Copyright (2011) American Chemical Society
