517
ICT infrastructure is installed, and data are automatically transferred via WIFI protocol to
the central database. They are processed and reported on a daily basis.
During the experiment the mobile phone (smartphone) was additionally installed on the window of the machine (see Fig. 3) and using freeware application the vibration data have been
acquired and stored to *.csv file. The first assumption was to measure vibration with the highest
available sampling frequency. Finally, the data have been pre-processed (down-sampled) to 1 Hz
sampling frequency as in onboard monitoring system to easily synchronize all data together.

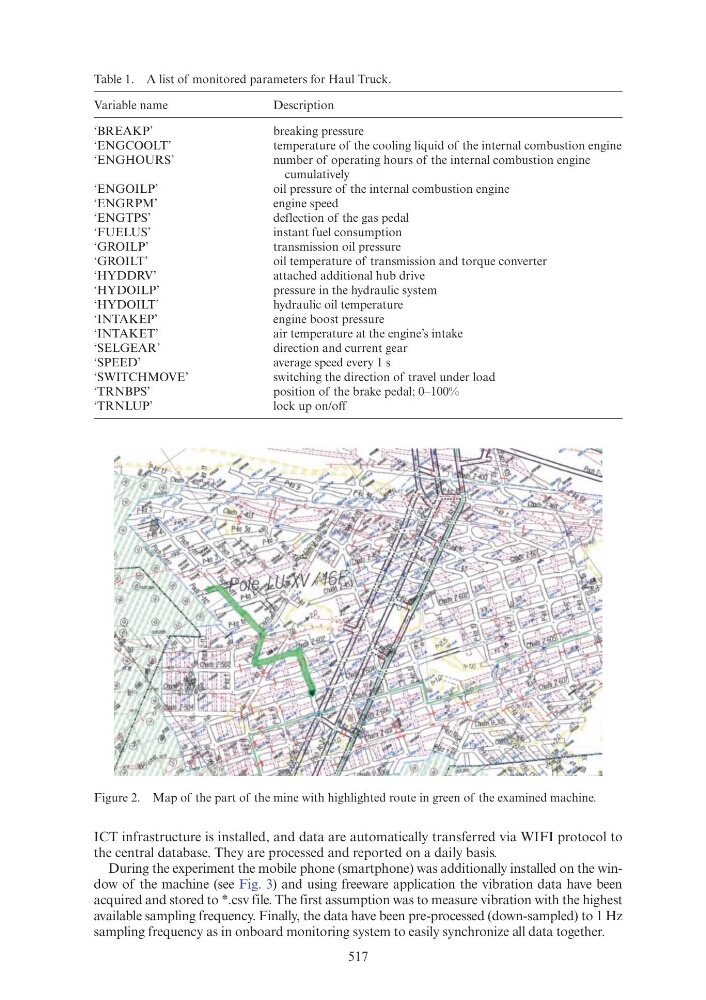

Table 1. A list of monitored parameters for Haul Truck.
Variable name
Description
‘BREAKP’
breaking pressure
‘ENGCOOLT’
temperature of the cooling liquid of the internal combustion engine
‘ENGHOURS’
number of operating hours of the internal combustion engine
cumulatively
‘ENGOILP’
oil pressure of the internal combustion engine
‘ENGRPM’
engine speed
‘ENGTPS’
deflection of the gas pedal
‘FUELUS’
instant fuel consumption
‘GROILP’
transmission oil pressure
‘GROILT’
oil temperature of transmission and torque converter
‘HYDDRV’
attached additional hub drive
‘HYDOILP’
pressure in the hydraulic system
‘HYDOILT’
hydraulic oil temperature
‘INTAKEP’
engine boost pressure
‘INTAKET’
air temperature at the engine’s intake
‘SELGEAR’
direction and current gear
‘SPEED’
average speed every 1 s
‘SWITCHMOVE’
switching the direction of travel under load
‘TRNBPS’
position of the brake pedal; 0–100%
‘TRNLUP’
lock up on/off
Figure 2. Map of the part of the mine with highlighted route in green of the examined machine.
