352
description of the outside the frame area specified in the Polish Standards—Mining maps or
standards for the creation of a base map.
4 CONCLUSIONS
The system presented in the article, used in Polish hard coal mines, to develop a digital model
of the deposit, can be considered as a system for documenting and planning hard coal production. It allows for streamlining the implementation of tasks in the field of conducting
underground mining plant operations. The proposed solution based on the Fusion Middleware SOA Suite software of the Oracle company, along with application programs, in
particular the GEOLISP software is a very good solution, in particular due to the fact that
the scope of the functionality of the system was adapted to the Polish conditions of conducting exploitation, while meeting the requirements included in the relevant regulations. It seems
that an important advantage of the DMD system is that it is systematically extended with
additional functionalities resulting from the current needs of mining entrepreneurs. The article presents only the most important ones. Among the important new solutions used in the
system, one should mention the proprietary algorithm of introducing and predicting occurrence of faults, which is of key importance for the design of exploitation and the method of
data collection for the purpose of determining the effects of mining works in the rock mass
and on the surface.

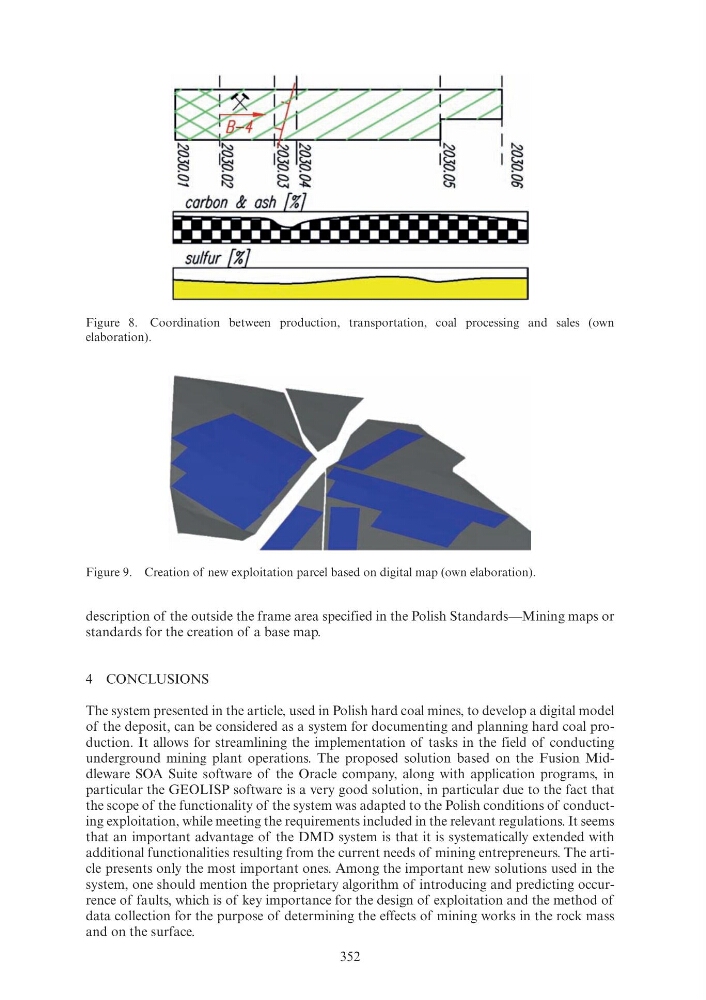

Figure 8. Coordination between production, transportation, coal processing and sales (own
elaboration).
Figure 9. Creation of new exploitation parcel based on digital map (own elaboration).
I~
1&: !=::5
~
carbon & as~
~~
sulfur[%!
~F-------------------~
