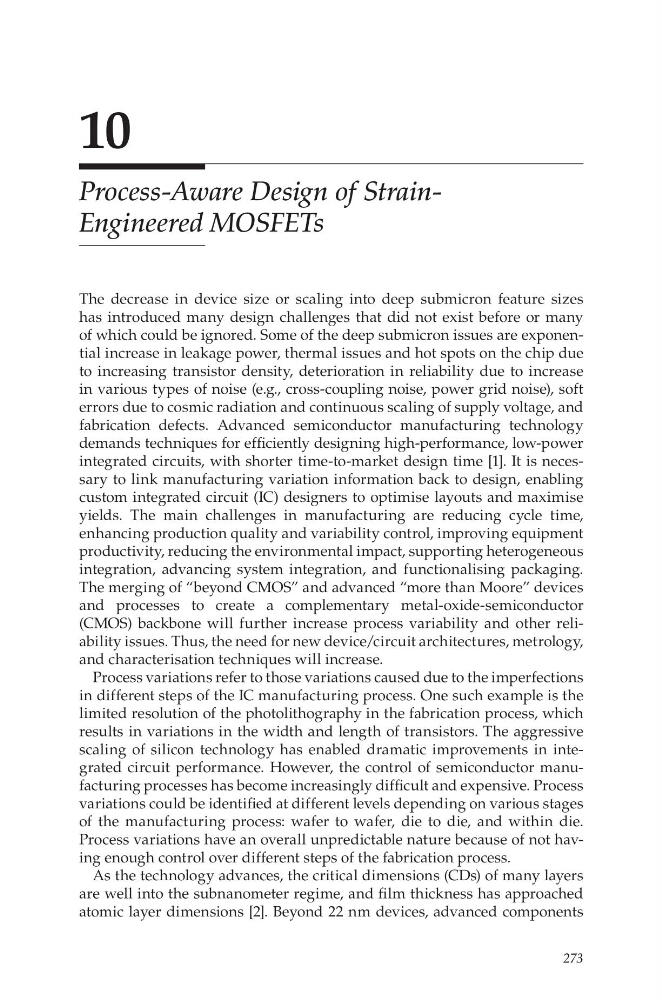

Process-Aware Design of StrainEngineered MOSFETs
The decrease in device size or scaling into deep submicron feature sizes
has introduced many design challenges that did not exist before or many
of which could be ignored. Some of the deep submicron issues are exponential increase in leakage power, thermal issues and hot spots on the chip due
to increasing transistor density, deterioration in reliability due to increase
in various types of noise (e.g., cross-coupling noise, power grid noise), soft
errors due to cosmic radiation and continuous scaling of supply voltage, and
fabrication defects. Advanced semiconductor manufacturing technology
demands techniques for efficiently designing high-performance, low-power
integrated circuits, with shorter time-to-market design time [1]. It is necessary to link manufacturing variation information back to design, enabling
custom integrated circuit (IC) designers to optimise layouts and maximise
yields. The main challenges in manufacturing are reducing cycle time,
enhancing production quality and variability control, improving equipment
productivity, reducing the environmental impact, supporting heterogeneous
integration, advancing system integration, and functionalising packaging.
The merging of “beyond CMOS” and advanced “more than Moore” devices
and processes to create a complementary metal-oxide-semiconductor
(CMOS) backbone will further increase process variability and other reliability issues. Thus, the need for new device/circuit architectures, metrology,
and characterisation techniques will increase.
Process variations refer to those variations caused due to the imperfections
in different steps of the IC manufacturing process. One such example is the
limited resolution of the photolithography in the fabrication process, which
results in variations in the width and length of transistors. The aggressive
scaling of silicon technology has enabled dramatic improvements in integrated circuit performance. However, the control of semiconductor manufacturing processes has become increasingly difficult and expensive. Process
variations could be identified at different levels depending on various stages
of the manufacturing process: wafer to wafer, die to die, and within die.
Process variations have an overall unpredictable nature because of not having enough control over different steps of the fabrication process.
As the technology advances, the critical dimensions (CDs) of many layers
are well into the subnanometer regime, and film thickness has approached
atomic layer dimensions [2]. Beyond 22 nm devices, advanced components
