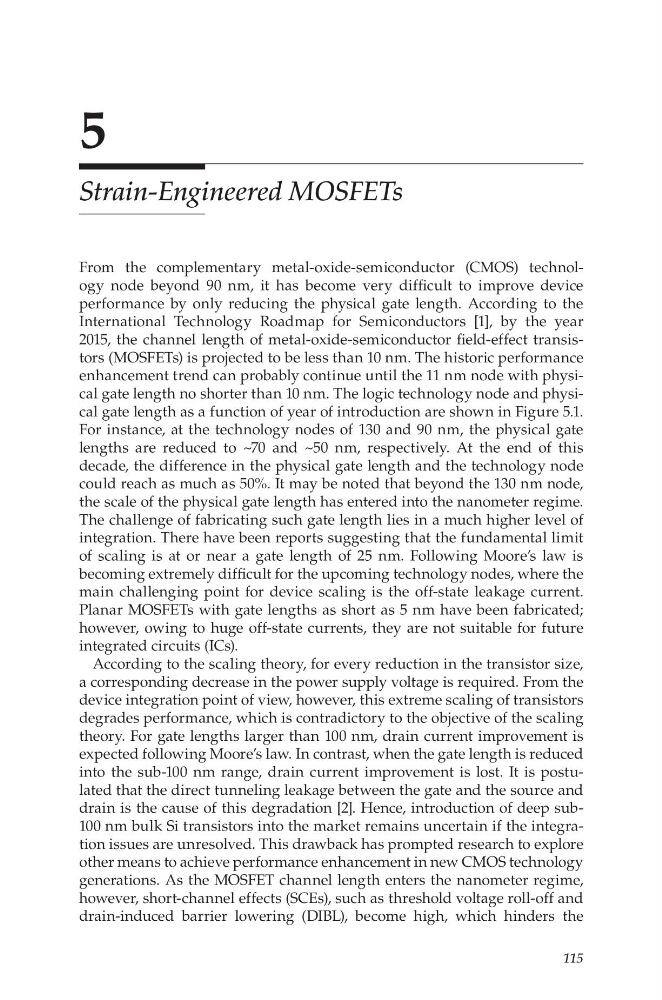

Strain-Engineered MOSFETs
From the complementary metal-oxide-semiconductor (CMOS) technology node beyond 90 nm, it has become very difficult to improve device
performance by only reducing the physical gate length. According to the
International Technology Roadmap for Semiconductors [1], by the year
2015, the channel length of metal-oxide-semiconductor field-effect transistors (MOSFETs) is projected to be less than 10 nm. The historic performance
enhancement trend can probably continue until the 11 nm node with physical gate length no shorter than 10 nm. The logic technology node and physical gate length as a function of year of introduction are shown in Figure 5.1.
For instance, at the technology nodes of 130 and 90 nm, the physical gate
lengths are reduced to ~70 and ~50 nm, respectively. At the end of this
decade, the difference in the physical gate length and the technology node
could reach as much as 50%. It may be noted that beyond the 130 nm node,
the scale of the physical gate length has entered into the nanometer regime.
The challenge of fabricating such gate length lies in a much higher level of
integration. There have been reports suggesting that the fundamental limit
of scaling is at or near a gate length of 25 nm. Following Moore’s law is
becoming extremely difficult for the upcoming technology nodes, where the
main challenging point for device scaling is the off-state leakage current.
Planar MOSFETs with gate lengths as short as 5 nm have been fabricated;
however, owing to huge off-state currents, they are not suitable for future
integrated circuits (ICs).
According to the scaling theory, for every reduction in the transistor size,
a corresponding decrease in the power supply voltage is required. From the
device integration point of view, however, this extreme scaling of transistors
degrades performance, which is contradictory to the objective of the scaling
theory. For gate lengths larger than 100 nm, drain current improvement is
expected following Moore’s law. In contrast, when the gate length is reduced
into the sub-100 nm range, drain current improvement is lost. It is postulated that the direct tunneling leakage between the gate and the source and
drain is the cause of this degradation [2]. Hence, introduction of deep sub100 nm bulk Si transistors into the market remains uncertain if the integration issues are unresolved. This drawback has prompted research to explore
other means to achieve performance enhancement in new CMOS technology
generations. As the MOSFET channel length enters the nanometer regime,
however, short-channel effects (SCEs), such as threshold voltage roll-off and
drain-induced barrier lowering (DIBL), become high, which hinders the
