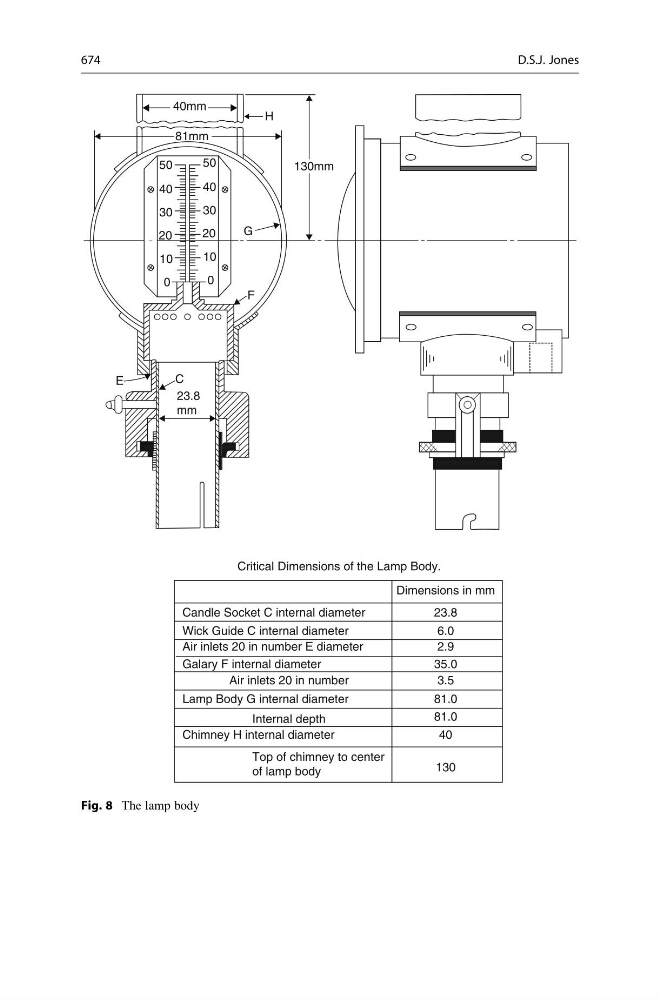

Critical Dimensions of the Lamp Body.
Dimensions in mm
23.8
6.0
2.9
35.0
3.5
81.0
81.0
40
130
Candle Socket C internal diameter
Wick Guide C internal diameter
Air inlets 20 in number E diameter
Galary F internal diameter
Air inlets 20 in number
Lamp Body G internal diameter
Internal depth
Chimney H internal diameter
Top of chimney to center
of lamp body
Fig. 8 The lamp body
