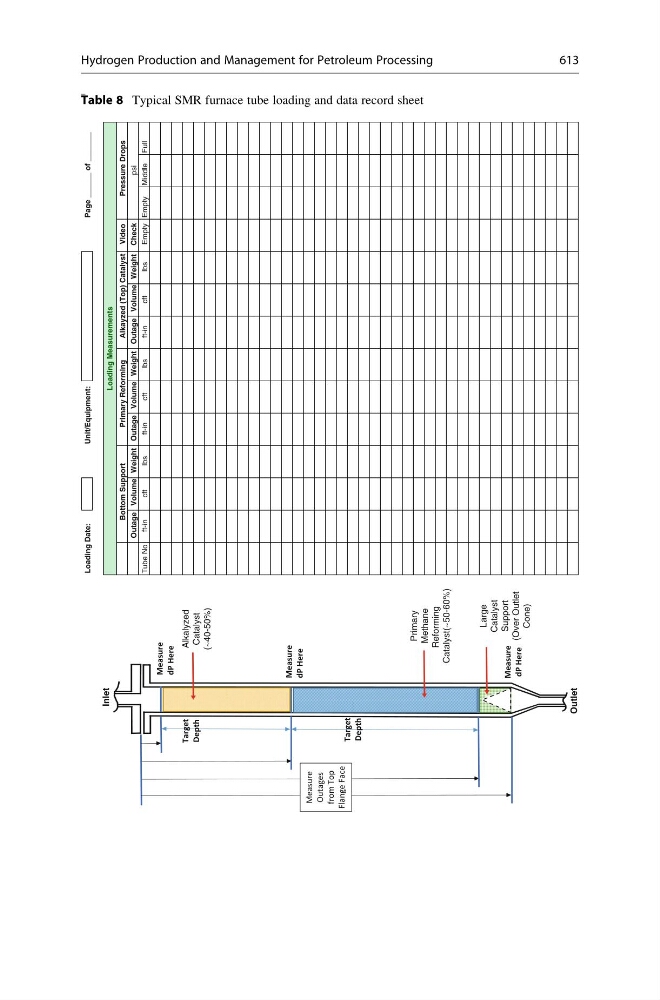

Table 8 Typical SMR furnace tube loading and data record sheet
Loading Date:
Unit/Equipment:
Page ______ of _______
Inlet
Video
Outage Volume Weight Outage Volume Weight Outage Volume Weight Check
Tube No
ft-in
cft
lbs
ft-in
cft
lbs
ft-in
cft
lbs
Empty Empty Middle Full
Alkalyzed
Catalyst
(~40-50%)
Primary
Methane
Reforming
Catalyst(~50-60%)
Large
Catalyst
Support
(Over Outlet
Cone)
Outlet
Pressure Drops
psi
Loading Measurements
Bottom Support
Primary Reforming
Alkayzed (Top) Catalyst
Measure
Outages
from Top
Flange Face
Target
Depth
Target
Depth
Measure
dP Here
Measure
dP Here
Measure
dP Here
