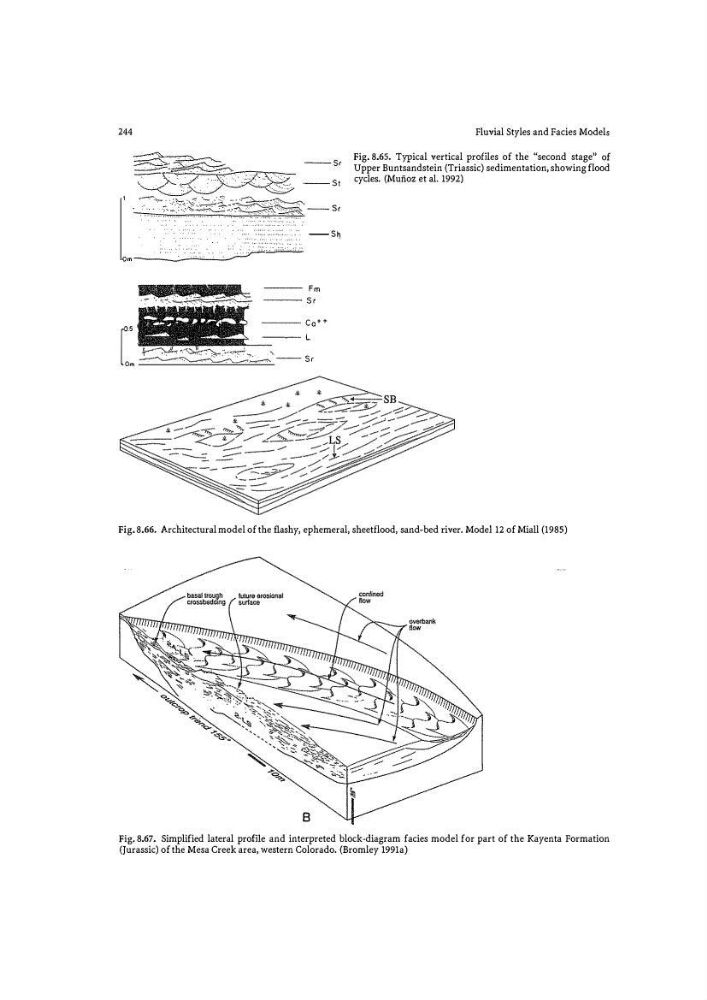

Fluvial Styles and Facies Models
Fig. 8.65. Typical vertical prof:tles of the "second stage" of
Upper Buntsandstein (Triassic) sedimentation, showing flood
cycles. (Munoz et aL 1992)
Fig. 8.66. Architectural model of the flashy, ephemeral, sheetflood, sand-bed river. Mode1 12 of Miall (1985)
8
Fig. 8.67. Simplified lateral proflle and interpreted block-diagram facies model for part of the Kayenta Formation
(Jurassic) of the Mesa Creek area, western Colorado. (Bromley 1991a)
.
. ..
'•
.
. ..... .
. .
