Appendix L.2: APXPS Facilities

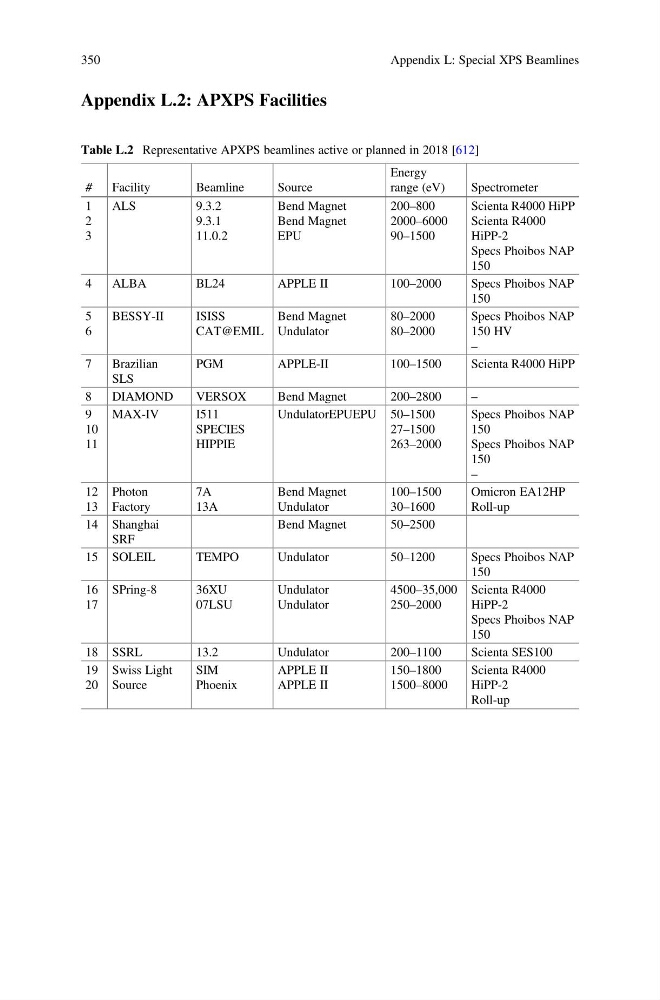

Table L.2 Representative APXPS beamlines active or planned in 2018 [612]
#
Facility
Beamline
Source
Energy
range (eV)
Spectrometer
1
2
3
ALS
9.3.2
9.3.1
11.0.2
Bend Magnet
Bend Magnet
EPU
200–800
2000–6000
90–1500
Scienta R4000 HiPP
Scienta R4000
HiPP-2
Specs Phoibos NAP
150
4
ALBA
BL24
APPLE II
100–2000
Specs Phoibos NAP
150
5
6
BESSY-II
ISISS
CAT@EMIL
Bend Magnet
Undulator
80–2000
80–2000
Specs Phoibos NAP
150 HV
–
7
Brazilian
SLS
PGM
APPLE-II
100–1500
Scienta R4000 HiPP
8
DIAMOND
VERSOX
Bend Magnet
200–2800
–
9
10
11
MAX-IV
I511
SPECIES
HIPPIE
UndulatorEPUEPU 50–1500
27–1500
263–2000
Specs Phoibos NAP
150
Specs Phoibos NAP
150
–
12
13
Photon
Factory
7A
13A
Bend Magnet
Undulator
100–1500
30–1600
Omicron EA12HP
Roll-up
14 Shanghai
SRF
Bend Magnet
50–2500
15 SOLEIL
TEMPO
Undulator
50–1200
Specs Phoibos NAP
150
16
17
SPring-8
36XU
07LSU
Undulator
Undulator
4500–35,000
250–2000
Scienta R4000
HiPP-2
Specs Phoibos NAP
150
18 SSRL
13.2
Undulator
200–1100
Scienta SES100
19
20
Swiss Light
Source
SIM
Phoenix
APPLE II
APPLE II
150–1800
1500–8000
Scienta R4000
HiPP-2
Roll-up
350
Appendix L: Special XPS Beamlines
