12.9 Is This Synchrotron Radiation?
Throughout this book we have grown accustomed to synchrotron radiation sources
on a kilometer scale. A recent paper in Science reports a source on a sub-millimeter
scale, using a metasurface to guide a pulse of 800 nm radiation along a 100-mμ-scale
circular arc inside a LiTiO 3 crystal [608]. For a final late-night debate, is this
beautiful picture from a true synchrotron radiation source? (Fig. 12.13).
12.10 Suggested Exercises
1. Calculate the Pierce parameter ρ for a SASE X-ray FEL assuming an electron
current of 1 kA, a beam energy of 2.85 GeV, an undulator period of 29 mm,
horizontal and vertical rms beam dimensions of 40 μ, and K ¼ 1.513.
2. Calculate the gain length for the above Pierce parameter.
3. Estimate the length to saturation.
4. Estimate the emitted radiation per pulse at saturation.
12.11 Reference Books and Review Articles
1. The Physics of Free Electron Lasers; Saldin, E. L., Schneidmiller, E.V.,
Yurkov, M.V.; Springer, Berlin, 2000. ISBN 978-3-540-66266-2.
2. Synchrotron Radiation and Free-Electron Lasers: Principles of Coherent X-Ray
Generation, Kim, K.-J.; Huang, Z.; Lindberg, R.; Cambridge University Press,
Cambridge, 2017. ISBN 978-1-107-16261-1.

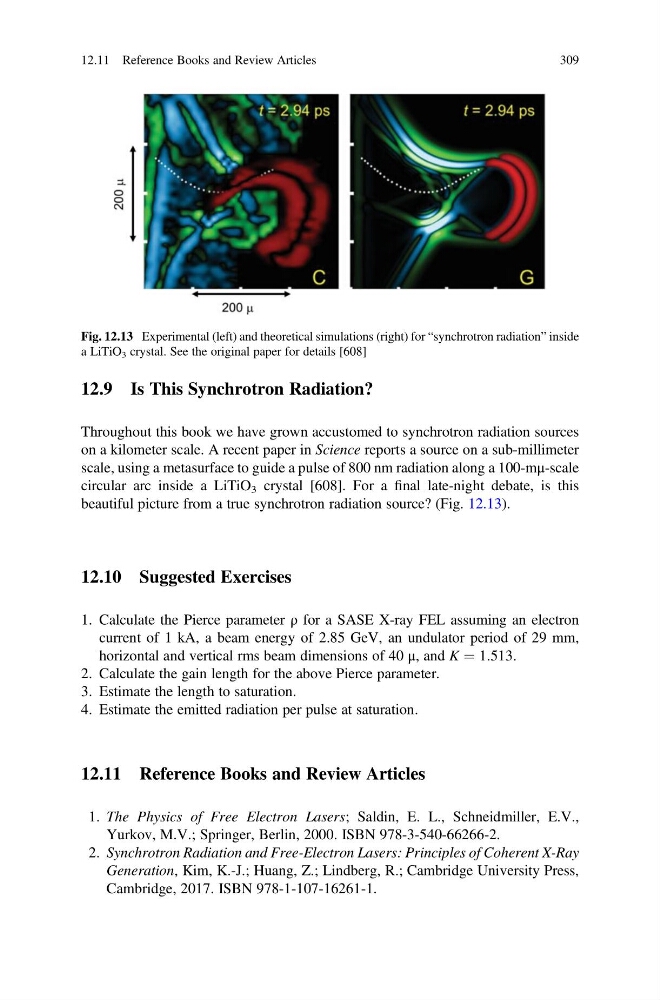

Fig. 12.13 Experimental (left) and theoretical simulations (right) for “synchrotron radiation” inside
a LiTiO 3 crystal. See the original paper for details [608]
12.11 Reference Books and Review Articles
309
