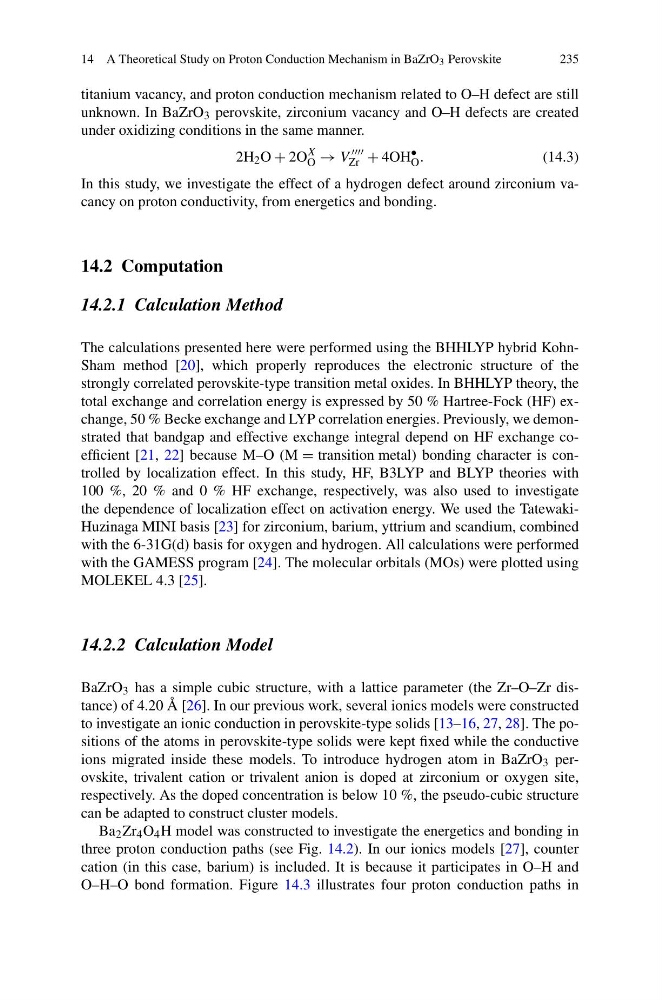

14 A Theoretical Study on Proton Conduction Mechanism in BaZrO 3 Perovskite
235
titanium vacancy, and proton conduction mechanism related to O–H defect are still
unknown. In BaZrO 3 perovskite, zirconium vacancy and O–H defects are created
under oxidizing conditions in the same manner.
2H 2 O + 2O
X
O → V
Zr + 4OH
•
O .
(14.3)
In this study, we investigate the effect of a hydrogen defect around zirconium vacancy on proton conductivity, from energetics and bonding.
14.2 Computation
14.2.1 Calculation Method
The calculations presented here were performed using the BHHLYP hybrid KohnSham method [20], which properly reproduces the electronic structure of the
strongly correlated perovskite-type transition metal oxides. In BHHLYP theory, the
total exchange and correlation energy is expressed by 50 % Hartree-Fock (HF) exchange, 50 % Becke exchange and LYP correlation energies. Previously, we demonstrated that bandgap and effective exchange integral depend on HF exchange coefficient [21, 22] because M–O (M = transition metal) bonding character is controlled by localization effect. In this study, HF, B3LYP and BLYP theories with
100 %, 20 % and 0 % HF exchange, respectively, was also used to investigate
the dependence of localization effect on activation energy. We used the TatewakiHuzinaga MINI basis [23] for zirconium, barium, yttrium and scandium, combined
with the 6-31G(d) basis for oxygen and hydrogen. All calculations were performed
with the GAMESS program [24]. The molecular orbitals (MOs) were plotted using
MOLEKEL 4.3 [25].
14.2.2 Calculation Model
BaZrO 3 has a simple cubic structure, with a lattice parameter (the Zr–O–Zr distance) of 4.20 Å [26]. In our previous work, several ionics models were constructed
to investigate an ionic conduction in perovskite-type solids [13–16, 27, 28]. The positions of the atoms in perovskite-type solids were kept fixed while the conductive
ions migrated inside these models. To introduce hydrogen atom in BaZrO 3 perovskite, trivalent cation or trivalent anion is doped at zirconium or oxygen site,
respectively. As the doped concentration is below 10 %, the pseudo-cubic structure
can be adapted to construct cluster models.
Ba 2 Zr 4 O 4 H model was constructed to investigate the energetics and bonding in
three proton conduction paths (see Fig. 14.2). In our ionics models [27], counter
cation (in this case, barium) is included. It is because it participates in O–H and
O–H–O bond formation. Figure 14.3 illustrates four proton conduction paths in
235
