connecting the interface of the binary phases. The interfacial interaction can drive
the miscibility of the BR with the NR matrix [102].
4.3 Effect of Layered Fillers in Non-linear Viscoelasticity
of Blends
Das et al., demonstrates, an approach of compatibilization between
polychloroprene (CR) and ethylene propylene diene monomer rubber (EPDM) by
using nanoclay (NC) as a compatibilizer and, simultaneously, as a very strong
reinforcing nano-filler. With the incorporation of less than 9 wt.% nanoclay, the
dynamic storage modulus above the glass transition region of such a blend increases
from ~2 MPa to ~54 MPa. This tremendous reinforcing as well as the compatibilization effect of the nanoclay was understood by thermodynamically driven preferential framework-like accumulation of exfoliated nanoclay platelets in the phase

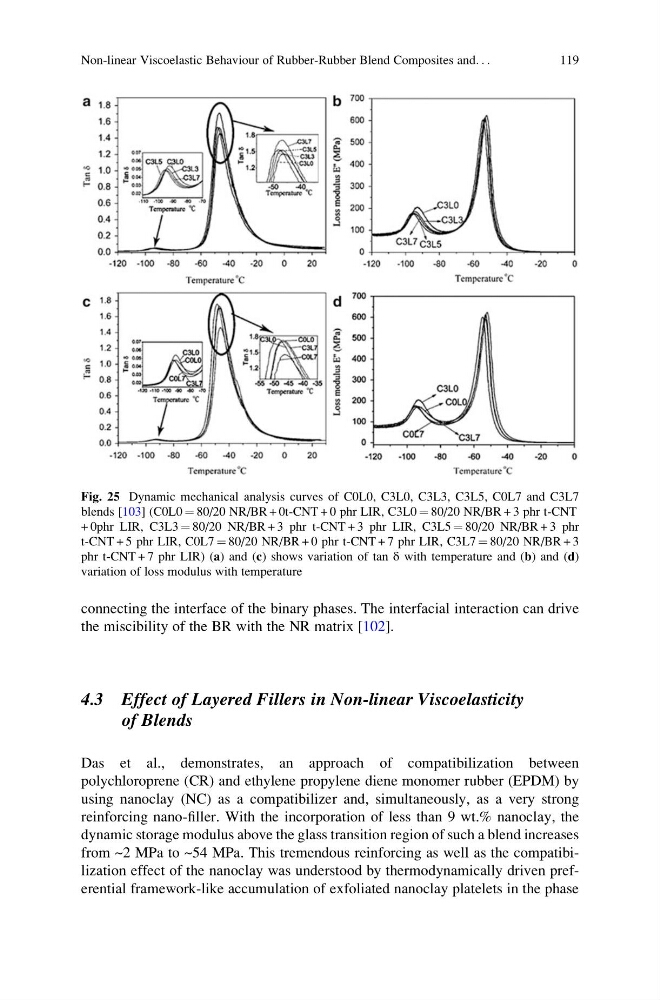

Fig. 25 Dynamic mechanical analysis curves of C0L0, C3L0, C3L3, C3L5, C0L7 and C3L7
blends [103] (C0L0 ¼ 80/20 NR/BR + 0t-CNT + 0 phr LIR, C3L0 ¼ 80/20 NR/BR + 3 phr t-CNT
+ 0phr LIR, C3L3 ¼ 80/20 NR/BR + 3 phr t-CNT + 3 phr LIR, C3L5 ¼ 80/20 NR/BR + 3 phr
t-CNT + 5 phr LIR, C0L7 ¼ 80/20 NR/BR + 0 phr t-CNT + 7 phr LIR, C3L7 ¼ 80/20 NR/BR + 3
phr t-CNT + 7 phr LIR) (a) and (c) shows variation of tan δ with temperature and (b) and (d)
variation of loss modulus with temperature
Non-linear Viscoelastic Behaviour of Rubber-Rubber Blend Composites and. . .
119
