Boonmahitthisud et al., prepared natural rubber/carboxylated styrene butadiene
rubber (NR/XSBR) (80/20) nanocomposites containing different loadings of carbon
nanotube (CNT) (0.1–0.4 phr) by a latex stage compounding method. The dynamic
mechanical properties, in terms of tan δ and E
0 , of the neat 80/20 NR/XSBR blend
and its nanocomposites were evaluated from À80 to 100
C. Figure 21 shows the
influence CNT loadings, on the tan δ and E
0 as a function of temperature for the
nanocomposites [100].
The variation in tan δ with temperature of the neat rubber blend and its
nanocomposites filled with CNT revealed two tan δ peaks at À60 to À43.4
C
and 30 to 50
C, that were assigned to the Tgs of NR and XSBR, respectively

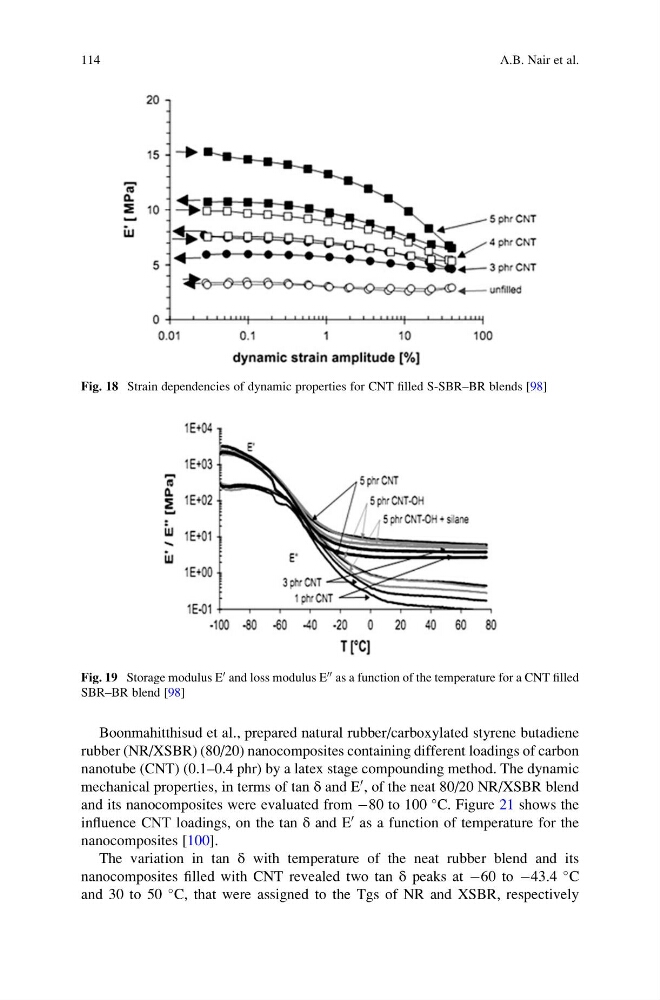

Fig. 18 Strain dependencies of dynamic properties for CNT filled S-SBR–BR blends [98]
Fig. 19 Storage modulus E
0 and loss modulus E
00 as a function of the temperature for a CNT filled
SBR–BR blend [98]
114
A.B. Nair et al.
rubber (NR/XSBR) (80/20) nanocomposites containing different loadings of carbon
nanotube (CNT) (0.1–0.4 phr) by a latex stage compounding method. The dynamic
mechanical properties, in terms of tan δ and E
0 , of the neat 80/20 NR/XSBR blend
and its nanocomposites were evaluated from À80 to 100
C. Figure 21 shows the
influence CNT loadings, on the tan δ and E
0 as a function of temperature for the
nanocomposites [100].
The variation in tan δ with temperature of the neat rubber blend and its
nanocomposites filled with CNT revealed two tan δ peaks at À60 to À43.4
C
and 30 to 50
C, that were assigned to the Tgs of NR and XSBR, respectively
Fig. 18 Strain dependencies of dynamic properties for CNT filled S-SBR–BR blends [98]
Fig. 19 Storage modulus E
0 and loss modulus E
00 as a function of the temperature for a CNT filled
SBR–BR blend [98]
114
A.B. Nair et al.
