Performance Enhancement of Dye-Sensitized Solar Cell Using …
421
0.0
0.1
0.2
0.3
0.4
0.5
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
0.50
0.55
Current Density (mA / cm
2
)
Voltage (V)
Carotene Sensitized DSSC without PLT15
Carotene Sensitized DSSC with PLT15

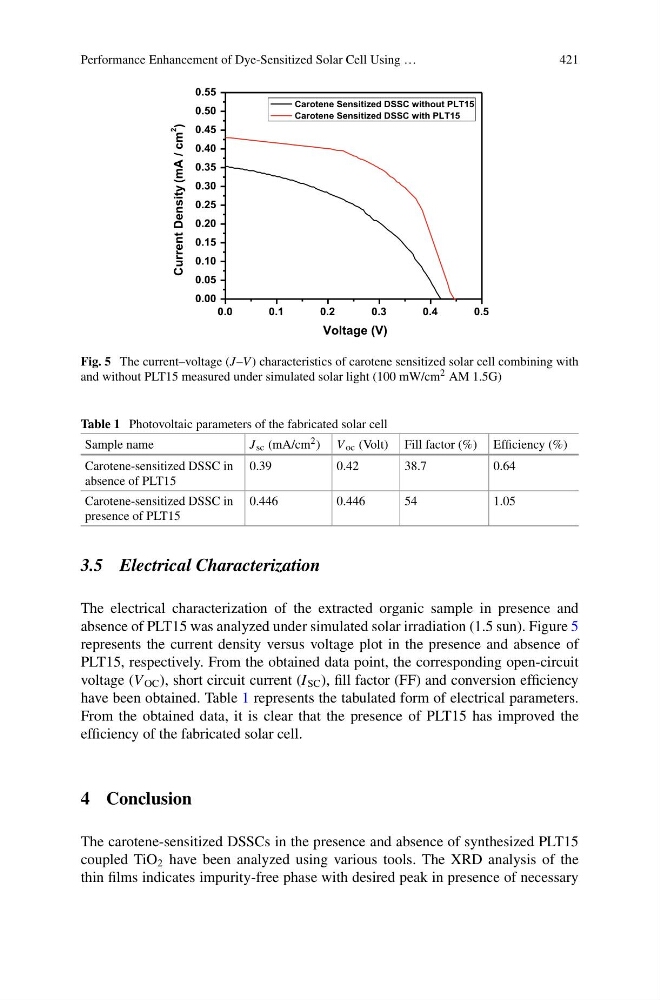

Fig. 5 The current–voltage (J–V ) characteristics of carotene sensitized solar cell combining with
and without PLT15 measured under simulated solar light (100 mW/cm 2 AM 1.5G)
Table 1 Photovoltaic parameters of the fabricated solar cell
Sample name
J sc (mA/cm 2 ) V oc (Volt) Fill factor (%) Efficiency (%)
Carotene-sensitized DSSC in
absence of PLT15
0.39
0.42
38.7
0.64
Carotene-sensitized DSSC in
presence of PLT15
0.446
0.446
54
1.05
3.5 Electrical Characterization
The electrical characterization of the extracted organic sample in presence and
absence of PLT15 was analyzed under simulated solar irradiation (1.5 sun). Figure 5
represents the current density versus voltage plot in the presence and absence of
PLT15, respectively. From the obtained data point, the corresponding open-circuit
voltage (V OC ), short circuit current (I SC ), fill factor (FF) and conversion efficiency
have been obtained. Table 1 represents the tabulated form of electrical parameters.
From the obtained data, it is clear that the presence of PLT15 has improved the
efficiency of the fabricated solar cell.
4 Conclusion
The carotene-sensitized DSSCs in the presence and absence of synthesized PLT15
coupled TiO 2 have been analyzed using various tools. The XRD analysis of the
thin films indicates impurity-free phase with desired peak in presence of necessary
