Understanding the Mechanical Response of Friction Stir Welded …
51

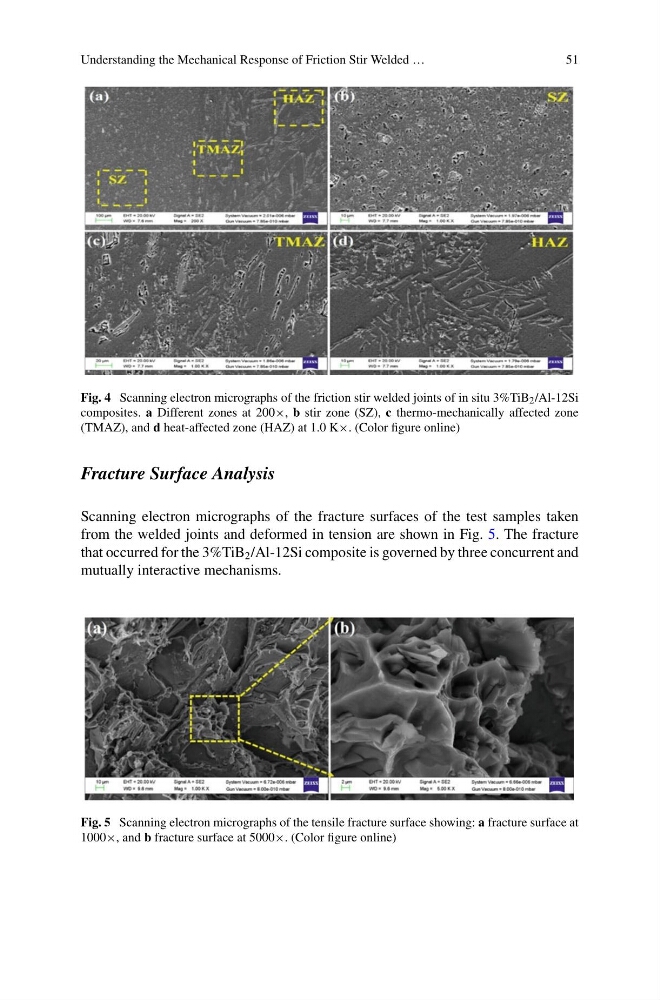

Fig. 4 Scanning electron micrographs of the friction stir welded joints of in situ 3%TiB 2 /Al-12Si
composites. a Different zones at 200×, b stir zone (SZ), c thermo-mechanically affected zone
(TMAZ), and d heat-affected zone (HAZ) at 1.0 K×. (Color figure online)
Fracture Surface Analysis
Scanning electron micrographs of the fracture surfaces of the test samples taken
from the welded joints and deformed in tension are shown in Fig. 5. The fracture
that occurred for the 3%TiB 2 /Al-12Si composite is governed by three concurrent and
mutually interactive mechanisms.
Fig. 5 Scanning electron micrographs of the tensile fracture surface showing: a fracture surface at
1000×, and b fracture surface at 5000×. (Color figure online)
