266
S. E. H. Murph and E. Searles

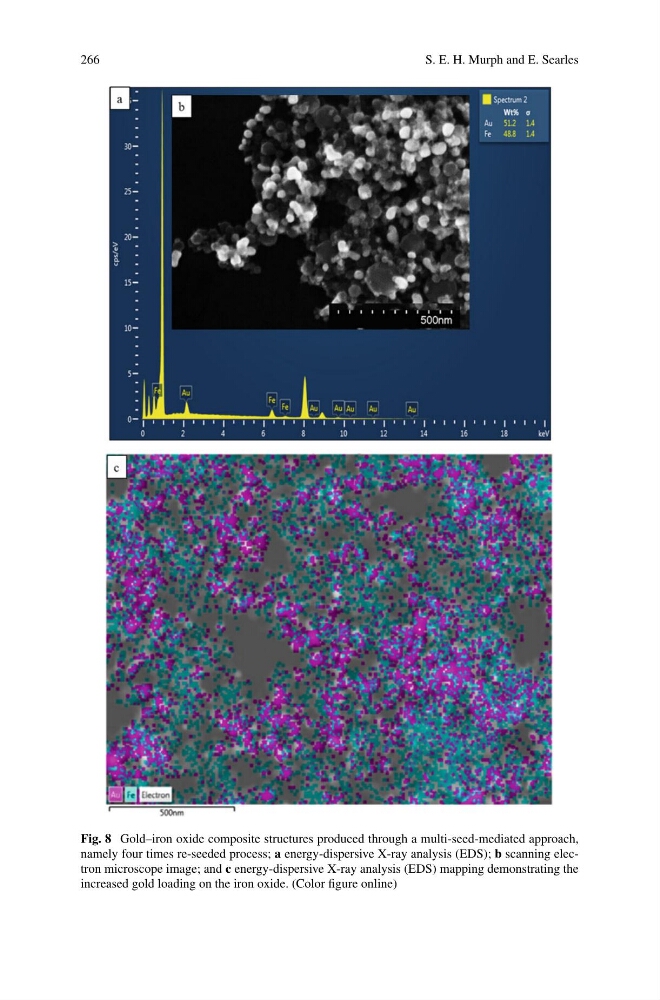

Fig. 8 Gold–iron oxide composite structures produced through a multi-seed-mediated approach,
namely four times re-seeded process; a energy-dispersive X-ray analysis (EDS); b scanning electron microscope image; and c energy-dispersive X-ray analysis (EDS) mapping demonstrating the
increased gold loading on the iron oxide. (Color figure online)
