A Comparative Study on the Effect of Graphene and Multi-walled …
151

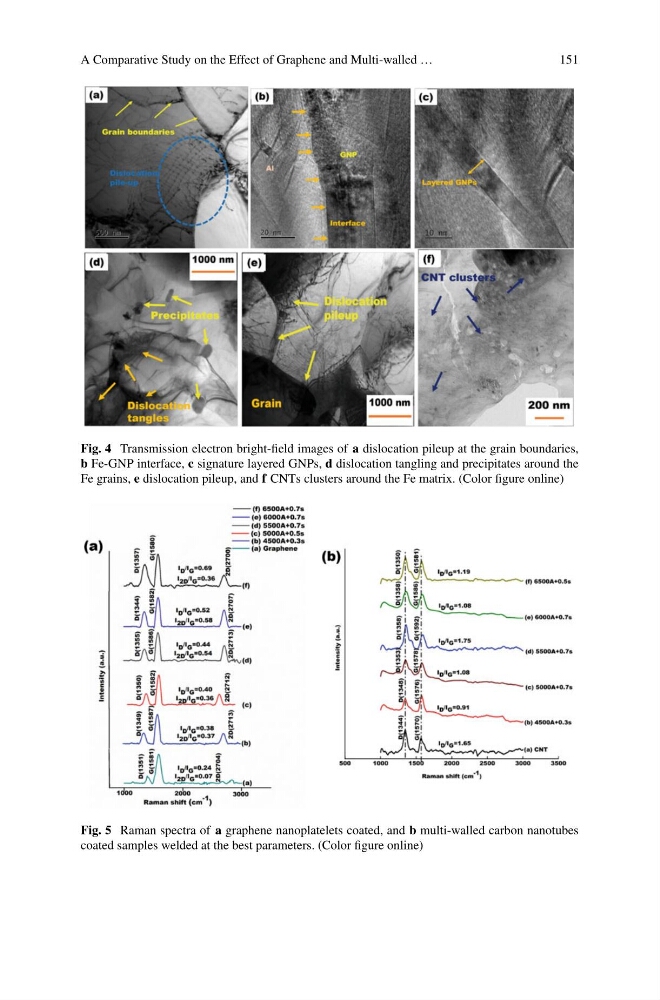

Fig. 4 Transmission electron bright-field images of a dislocation pileup at the grain boundaries,
b Fe-GNP interface, c signature layered GNPs, d dislocation tangling and precipitates around the
Fe grains, e dislocation pileup, and f CNTs clusters around the Fe matrix. (Color figure online)
Fig. 5 Raman spectra of a graphene nanoplatelets coated, and b multi-walled carbon nanotubes
coated samples welded at the best parameters. (Color figure online)
