80
3 Physical Theory of RFID System Physical Anti-Collision

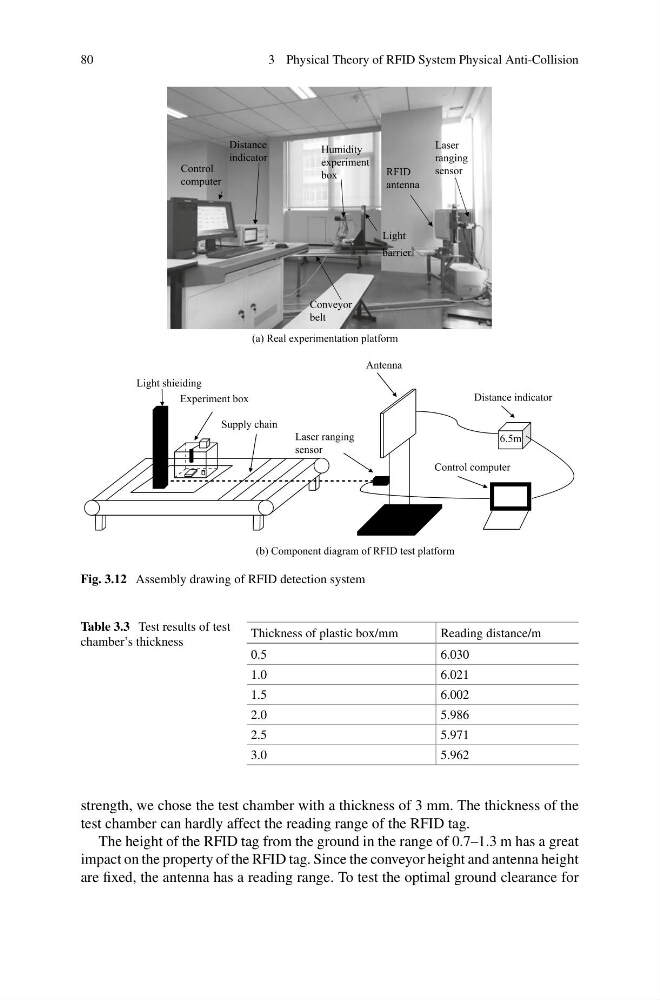

Fig. 3.12 Assembly drawing of RFID detection system
Table 3.3 Test results of test
chamber’s thickness
Thickness of plastic box/mm
Reading distance/m
0.5
6.030
1.0
6.021
1.5
6.002
2.0
5.986
2.5
5.971
3.0
5.962
strength, we chose the test chamber with a thickness of 3 mm. The thickness of the
test chamber can hardly affect the reading range of the RFID tag.
The height of the RFID tag from the ground in the range of 0.7–1.3 m has a great
impact on the property of the RFID tag. Since the conveyor height and antenna height
are fixed, the antenna has a reading range. To test the optimal ground clearance for
