160
5 Compositionally Modulated and Multilayered Deposits

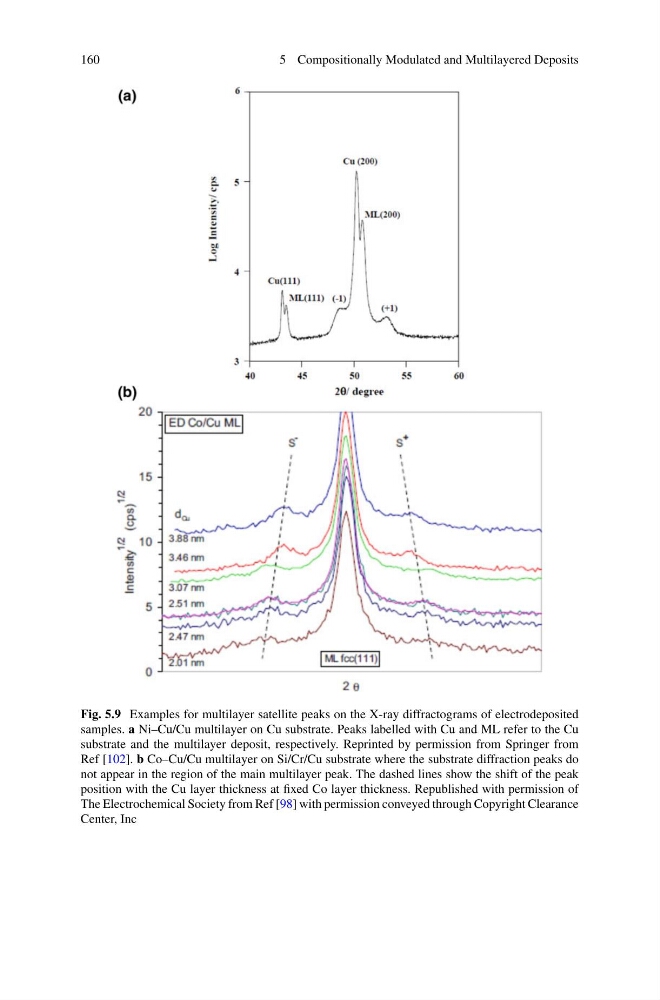

Fig. 5.9 Examples for multilayer satellite peaks on the X-ray diffractograms of electrodeposited
samples. a Ni–Cu/Cu multilayer on Cu substrate. Peaks labelled with Cu and ML refer to the Cu
substrate and the multilayer deposit, respectively. Reprinted by permission from Springer from
Ref [102]. b Co–Cu/Cu multilayer on Si/Cr/Cu substrate where the substrate diffraction peaks do
not appear in the region of the main multilayer peak. The dashed lines show the shift of the peak
position with the Cu layer thickness at fixed Co layer thickness. Republished with permission of
The Electrochemical Society from Ref [98] with permission conveyed through Copyright Clearance
Center, Inc
