Appendix A3: 235 U-Fueled and Pb-Zoned ADS Core
285
Location of
original target
Fuel assembly base
55.3*13 mm = 793.9 mm
In wire position
Target: 700 mm
75 mm
100 MeV proton
injection
Pb-Bi
target
165.9 mm (15, D)

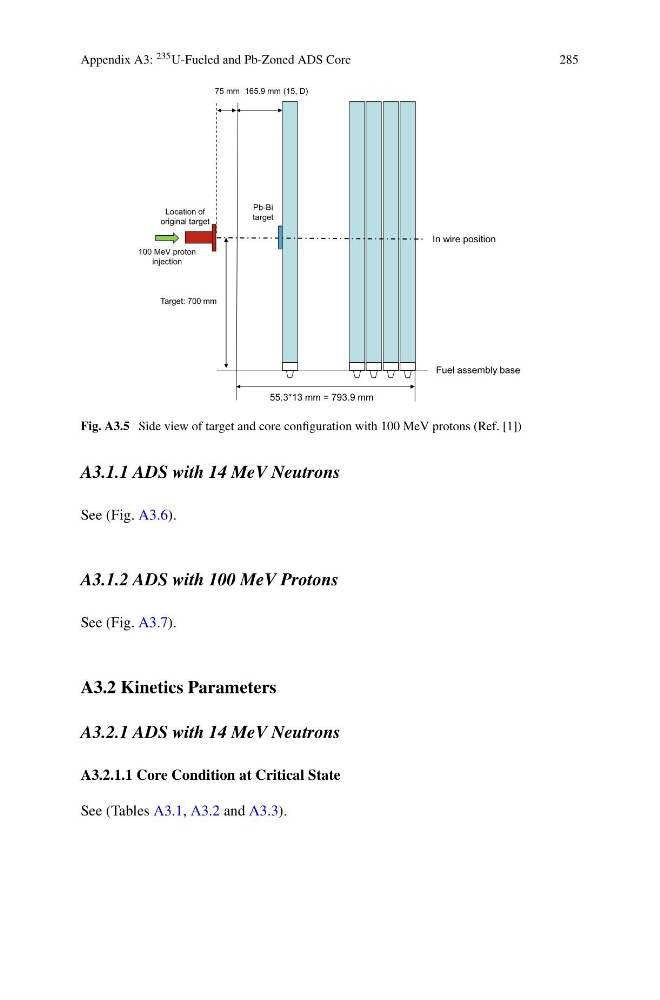

Fig. A3.5 Side view of target and core configuration with 100 MeV protons (Ref. [1])
A3.1.1 ADS with 14 MeV Neutrons
See (Fig. A3.6).
A3.1.2 ADS with 100 MeV Protons
See (Fig. A3.7).
A3.2 Kinetics Parameters
A3.2.1 ADS with 14 MeV Neutrons
A3.2.1.1 Core Condition at Critical State
See (Tables A3.1, A3.2 and A3.3).
