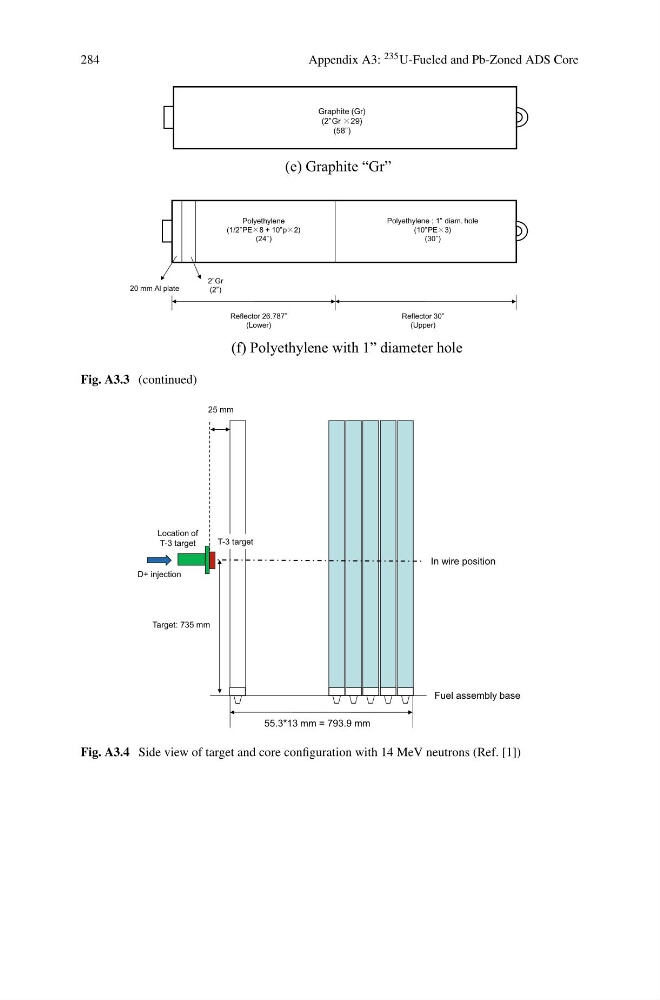

284
Appendix A3: 235 U-Fueled and Pb-Zoned ADS Core
(e) Graphite “Gr”
(f) Polyethylene with 1” diameter hole
Graphite (Gr)
(2”Gr 29)
(58”)
Polyethylene
(1/2”PE 8 + 10”p 2)
(24”)
20 mm Al plate
2”Gr
(2”)
Reflector 26.787”
(Lower)
Reflector 30”
(Upper)
Polyethylene ; 1” diam. hole
(10”PE 3)
(30”)
Fig. A3.3 (continued)
Location of
T-3 target
Fuel assembly base
55.3*13 mm = 793.9 mm
In wire position
Target: 735 mm
25 mm
D+ injection
T-3 target
Fig. A3.4 Side view of target and core configuration with 14 MeV neutrons (Ref. [1])
