Appendix A1: Experimental Benchmarks on ADS at Kyoto University …
251
50 mm (lower side)
50 mm (upper side)
Gold foil (Bare)
10 mm diam.
0.05 mm thick
Gold foil (Cd covers)
10 mm diam.
0.05 mm thick
Gold foil sandwiched
by two Cd covers
Cd cover:
14 mm diam.
1 mm thick
700 mm height in axial direction
From the bottom
54.3 mm

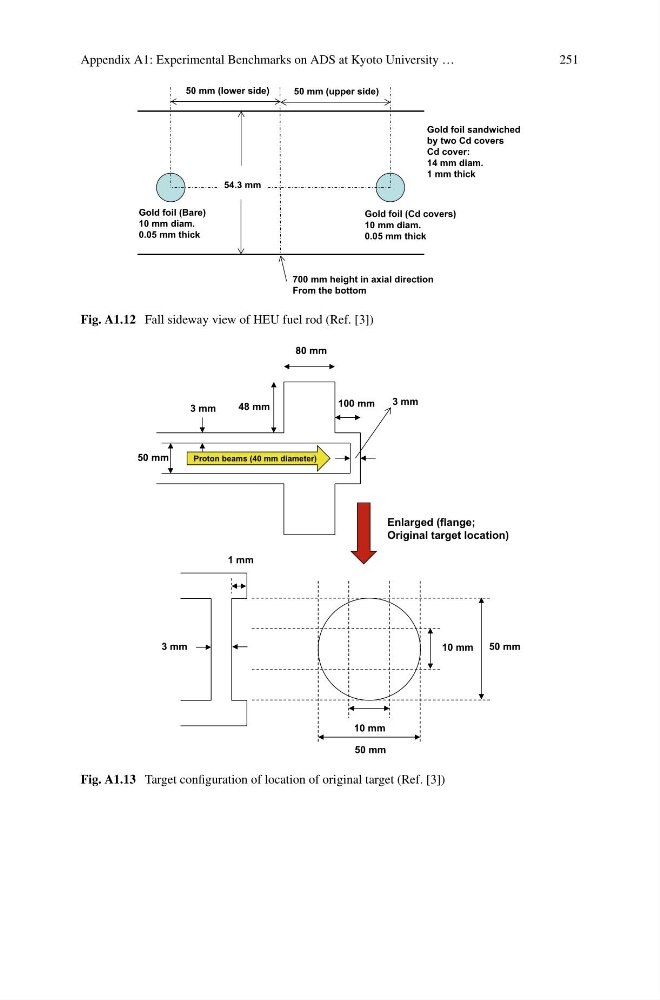

Fig. A1.12 Fall sideway view of HEU fuel rod (Ref. [3])
3 mm
1 mm
10 mm
50 mm
10 mm
50 mm
50 mm
3 mm
48 mm
80 mm
100 mm
3 mm
Enlarged (flange;
Original target location)
Proton beams (40 mm diameter)
Fig. A1.13 Target configuration of location of original target (Ref. [3])
