250
Appendix A1: Experimental Benchmarks on ADS at Kyoto University …
60”
(15, X)
700 mm
(15, X)
Al foli (10*10*1 mm)
Target (50 mm diam., x mm thick)
In foil (10*10*1 mm)
Thickness (x)
W: 12 mm
W-Be: 12 mm — 10 mm (in Be and W order for proton beams)
Pb-Bi: 18 mm

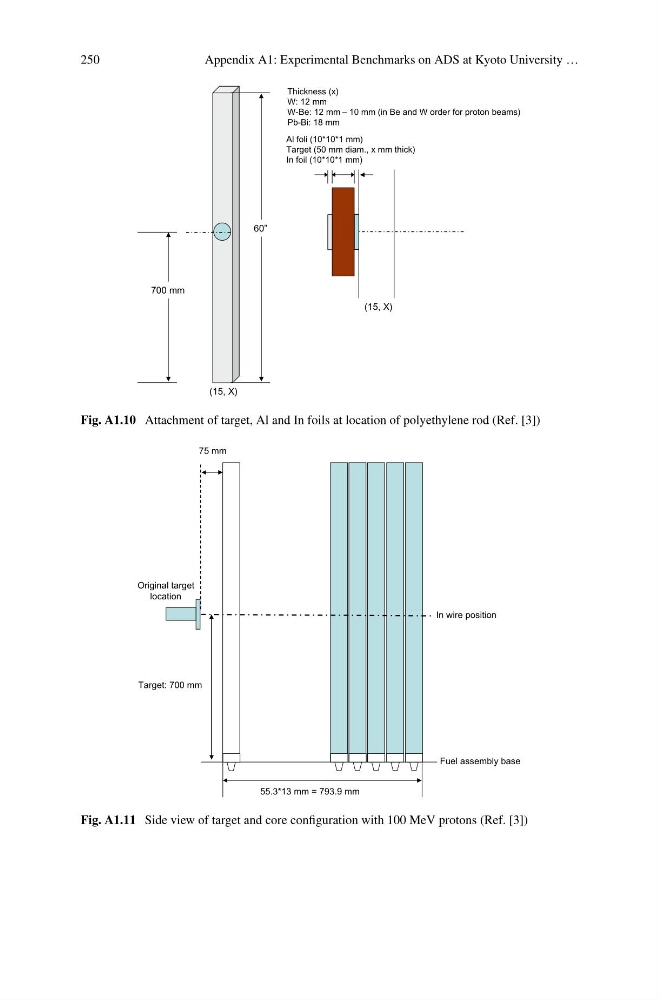

Fig. A1.10 Attachment of target, Al and In foils at location of polyethylene rod (Ref. [3])
Original target
location
Fuel assembly base
55.3*13 mm = 793.9 mm
In wire position
Target: 700 mm
75 mm
Fig. A1.11 Side view of target and core configuration with 100 MeV protons (Ref. [3])
