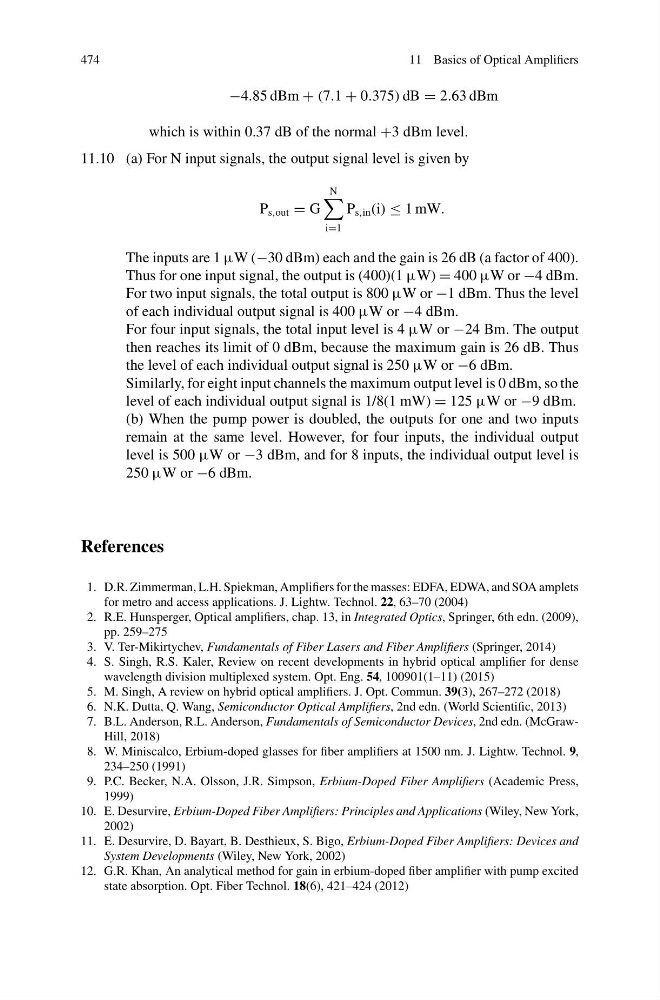

11 Basics of Optical Amplifiers
−4.85 dBm + (7.1 + 0.375) dB = 2.63 dBm
which is within 0.37 dB of the normal +3 dBm level.
11.10 (a) For N input signals, the output signal level is given by
P s,out = G
N
i=1
P s,in (i) ≤ 1 mW.
The inputs are 1 μW (−30 dBm) each and the gain is 26 dB (a factor of 400).
Thus for one input signal, the output is (400)(1 μW) = 400 μW or −4 dBm.
For two input signals, the total output is 800 μW or −1 dBm. Thus the level
of each individual output signal is 400 μW or −4 dBm.
For four input signals, the total input level is 4 μW or −24 Bm. The output
then reaches its limit of 0 dBm, because the maximum gain is 26 dB. Thus
the level of each individual output signal is 250 μW or −6 dBm.
Similarly, for eight input channels the maximum output level is 0 dBm, so the
level of each individual output signal is 1/8(1 mW) = 125 μW or −9 dBm.
(b) When the pump power is doubled, the outputs for one and two inputs
remain at the same level. However, for four inputs, the individual output
level is 500 μW or −3 dBm, and for 8 inputs, the individual output level is
250 μW or −6 dBm.
