424
Y. Kubo

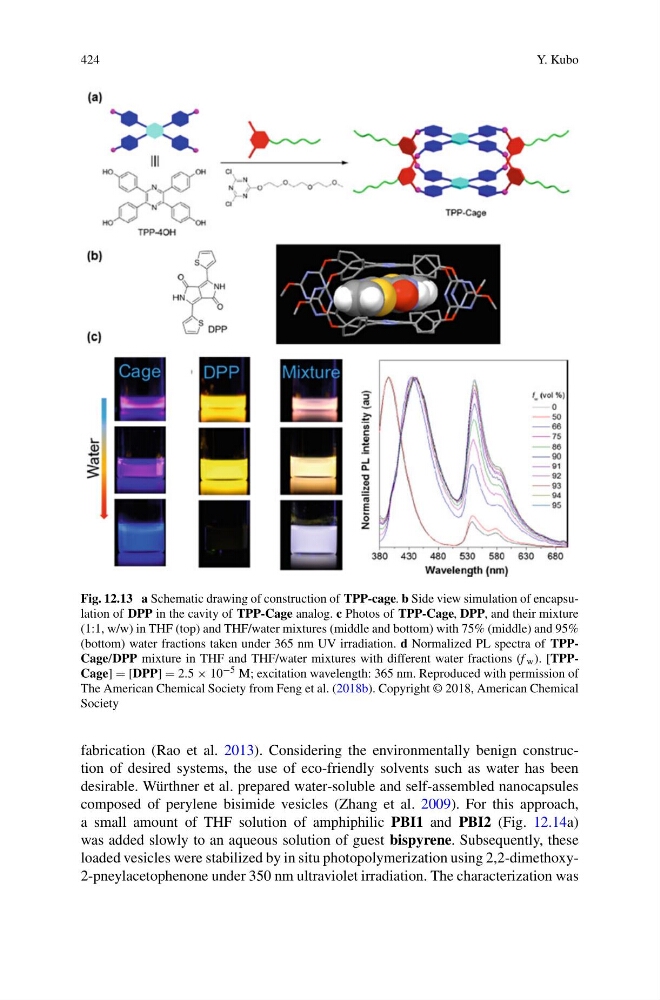

Fig. 12.13 a Schematic drawing of construction of TPP-cage. b Side view simulation of encapsulation of DPP in the cavity of TPP-Cage analog. c Photos of TPP-Cage, DPP, and their mixture
(1:1, w/w) in THF (top) and THF/water mixtures (middle and bottom) with 75% (middle) and 95%
(bottom) water fractions taken under 365 nm UV irradiation. d Normalized PL spectra of TPPCage/DPP mixture in THF and THF/water mixtures with different water fractions (f w ). [TPPCage] = [DPP] = 2.5 × 10 −5 M; excitation wavelength: 365 nm. Reproduced with permission of
The American Chemical Society from Feng et al. (2018b). Copyright © 2018, American Chemical
Society
fabrication (Rao et al. 2013). Considering the environmentally benign construction of desired systems, the use of eco-friendly solvents such as water has been
desirable. Würthner et al. prepared water-soluble and self-assembled nanocapsules
composed of perylene bisimide vesicles (Zhang et al. 2009). For this approach,
a small amount of THF solution of amphiphilic PBI1 and PBI2 (Fig. 12.14a)
was added slowly to an aqueous solution of guest bispyrene. Subsequently, these
loaded vesicles were stabilized by in situ photopolymerization using 2,2-dimethoxy2-pneylacetophenone under 350 nm ultraviolet irradiation. The characterization was
