(a) Layer height: 0.5 mm.
(b) Fill density: 60%.
(c) Fill angle: 90%.
(d) Infill speed: 15 mm/s.
(e) Nozzle internal diameter (ID): 0.5 mm.
(f) See Note 17 for further parameters to be specified.
3. Export the G-code and import it in the controlling software.
By using the same software, the deposition process can now be
started:
1. Set the print head temperature to 165
C and wait for the
extruder to heat up.

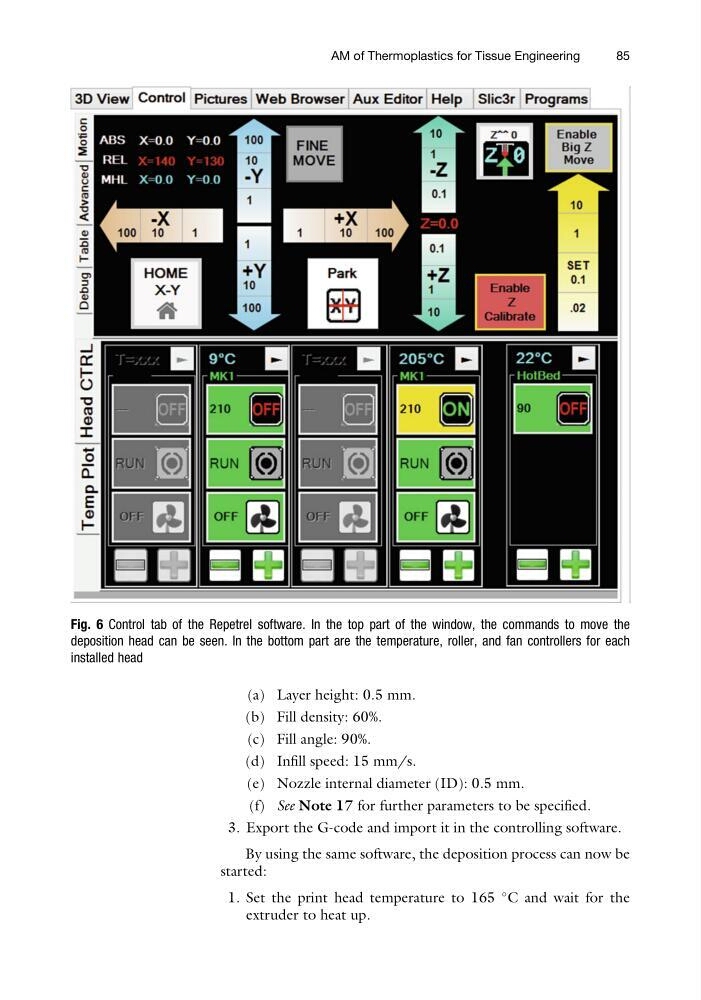

Fig. 6 Control tab of the Repetrel software. In the top part of the window, the commands to move the
deposition head can be seen. In the bottom part are the temperature, roller, and fan controllers for each
installed head
AM of Thermoplastics for Tissue Engineering
85
