514
O. Aksimentyeva et al.

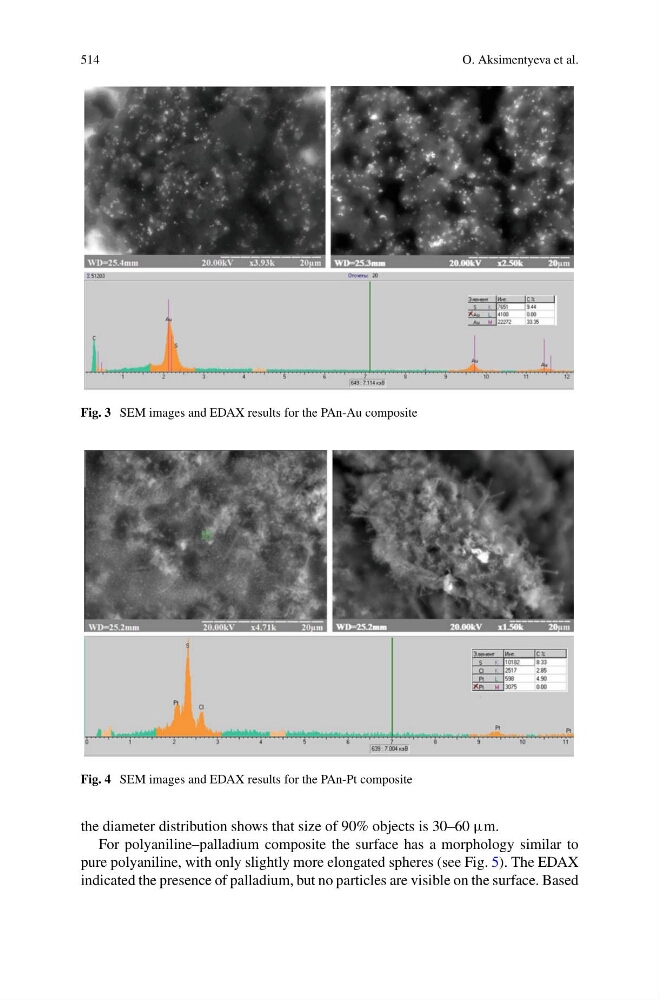

Fig. 3 SEM images and EDAX results for the PAn-Au composite
Fig. 4 SEM images and EDAX results for the PAn-Pt composite
the diameter distribution shows that size of 90% objects is 30–60 μm.
For polyaniline–palladium composite the surface has a morphology similar to
pure polyaniline, with only slightly more elongated spheres (see Fig. 5). The EDAX
indicated the presence of palladium, but no particles are visible on the surface. Based
O. Aksimentyeva et al.
Fig. 3 SEM images and EDAX results for the PAn-Au composite
Fig. 4 SEM images and EDAX results for the PAn-Pt composite
the diameter distribution shows that size of 90% objects is 30–60 μm.
For polyaniline–palladium composite the surface has a morphology similar to
pure polyaniline, with only slightly more elongated spheres (see Fig. 5). The EDAX
indicated the presence of palladium, but no particles are visible on the surface. Based
